  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

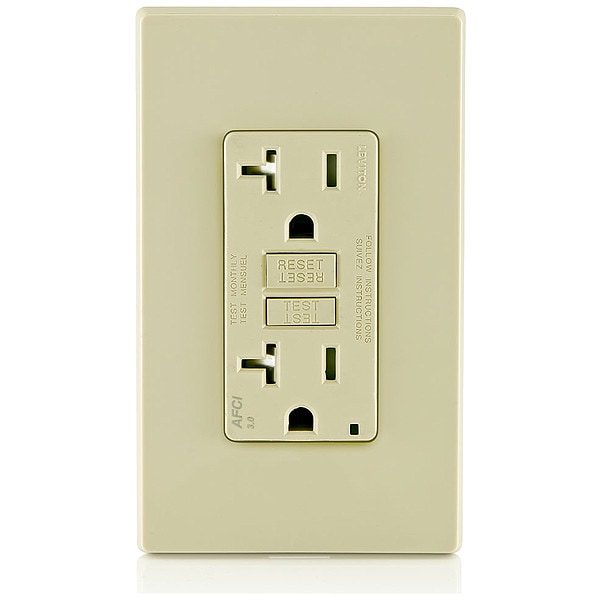

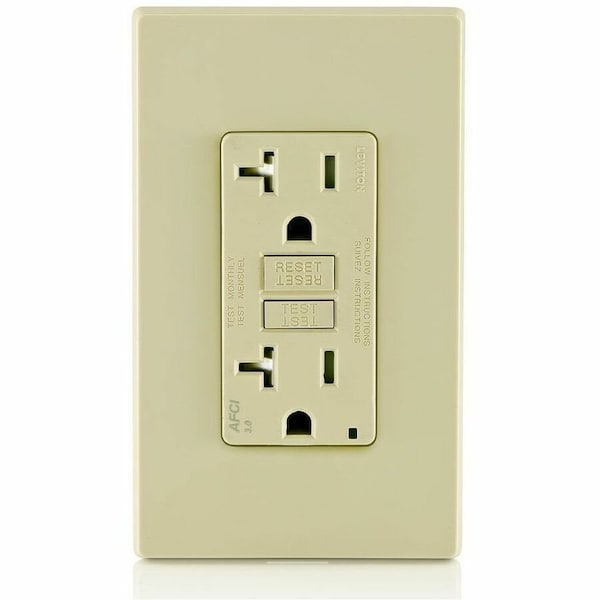

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory AFTR2-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # AFTR2-I

  • Zoro # G804393336

product price: $34.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFTR2-I
Zoro #
G804393336
UPC #
07847757499
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, UL1699.A
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
General Purpose
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Surge Suppression
Yes
Outlet Type - Plugs and Receptacles
Blank Face
Includes
Screws, Self Grounding Clip
Weather Resistant - Plugs and Receptacles
No
Special Features
Device Design Reduces Nuisance Tripping, Impact-Resistant, Over-Voltage Resistant, Silver Alloy Contact, Two-Year Product Warranty
HP
1 hp
Power Indicator
Yes
Self-Testing
No
Surge Protection
No
GFCI
No
Horsepower Rating
1 hp
Housing Material
Polycarbonate
Grade
General Use
Polarized
Yes
Contact Material
Brass
Cover Type
No Cover
Minimum Operating Temperature
-31 Degrees F
Number of Outlets
2
Reverse Service
Yes
Reset Type
Automatic
AFCI
Yes
Visual Indicator Lights
Power Connected
Wall Plate Material
Nylon
Connection Orientation
Straight
Self Testing
No
Hub Type
Feed Through
UL 94 Flammability Rating
V-2
Compatible with Series
AFTR2
Maximum Operating Temperature
150.8 Degrees F
Torque Range
14 - 18 in.-lbs
Face Material
Thermoplastic
Series
AFTR2
CSA C22.2 No. 42
Yes
Strap Material
Galvanized Steel
Line Contacts
Brass Triple-Wipe
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Terminal Accom.
14-10 AWG
Yoke
Zinc-Plated Steel
Dielectric Voltage
Withstands 1250VAC per UL 1699A
CSA Technical Information Letter No. M-02A
Yes
UL1699.A
File E342815
Body Material
Polycarbonate
Termination
Back & Side
ANSI
C-73
Grounding Screw
Plated Steel
Clamps
Brass
At Rated Voltage
1 HP
Wallplate
Included
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Standards and Certifications
UL/CSA, NEMA WD6
Operating Temperature
-35C to +66C
Feature
Tamper-Resistant
UL 498
Yes
Wire
3
Flammability
Rated V-2 per UL 94
UL Fed Spec WC-596
Yes
Terminal Screws
Plated Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
