Shop LEVITON

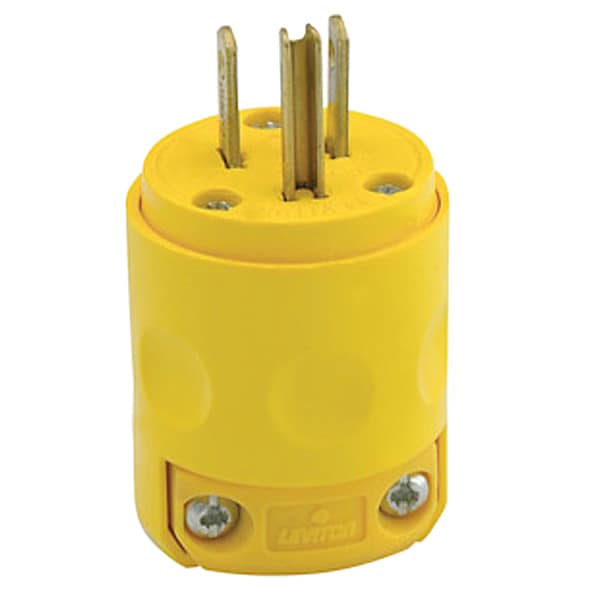

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 515PV

  • Zoro # G004393341

product price:
$
4.69
/ea
Sold in multiples of 10 for $46.90

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
515PV
Zoro #
G004393341
UPC #
07847784124
Country of Origin
Mexico
Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Shatter and Crack Resistant
Grade
General Use
Number of Wires
3
Grade - Plugs and Receptacles
General
Special Features
Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Material
PVC
Maximum Operating Temperature
140 Degrees F
Blade Material
Brass
Market
Residential
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Polarized
No
Housing Material
PVC
Minimum Operating Temperature
-40 Degrees F
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge
18-12 AWG
Application
515PV
Body Material
PVC
Flammability
Rated V-2 per UL 94
Operating Temp.
-40°C to 60°C
Dielectric Strength
Withstands 2000V per UL498
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Assembly Screws
Steel, Zinc Plated
Power Indicating Light
No
NEMA Enclosure Rating
Not Rated
Shrouded
No
Series
Valise

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color Yellow, IP Rating Not Rated, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Resistance Properties Shatter and Crack Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.38 in, For Maximum Cable Diameter 0.655 in
