  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

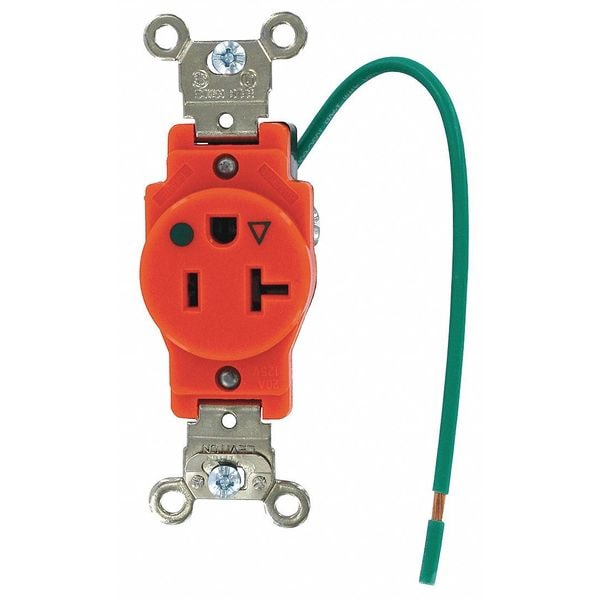

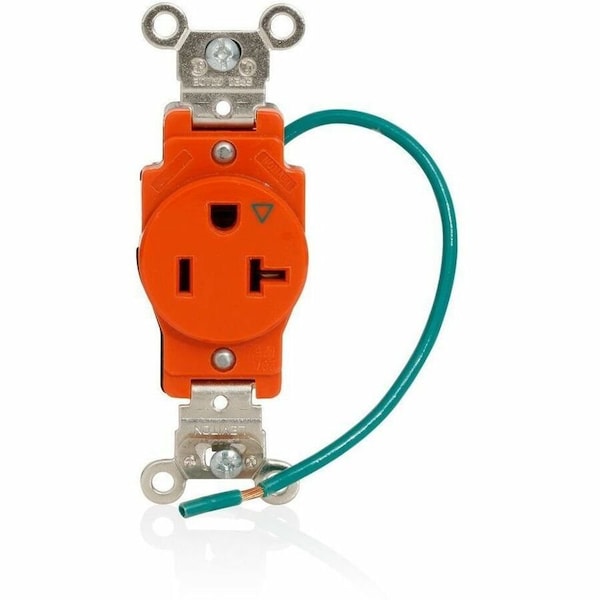

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange 5361-IG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

  • Mfr # 5361-IG

  • Zoro # G104836571

product price: $16.49
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5361-IG
Zoro #
G104836571
UPC #
07847749868
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes
Isolated Ground
Material
Thermoplastic Nylon (Body and Face)
Sub-Category
Single Receptacles
Application Environment
Heavy-Duty Industrial Grade
Market
Commercial, Industrial
Housing Material
Thermoplastic Nylon
Polarized
Yes
Cover Type
No Cover
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Number of Outlets
1
NEMA Enclosure Rating
Not Rated
Includes Mounting Hardware
Yes
Contact Material
Brass
Screw Terminal Torque
14-18 in-lbs
Pole
2
Face Material
Thermoplastic Nylon
Function
Isolated Ground
Operating Temperature
-40°C to 60°C
Termination
Back or Side Wire
CSA C22.2 No. 42
File 152105
Line Contacts
Brass Triple-Wipe
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamp Nuts
Zinc-Plated Steel
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Strap Material
Zinc-Plated Steel
Ground Clips
Brass-Plated
ANSI
C-73
Flammability
Rated V-2 per UL 94
UL Fed Spec WC-596
File E13399
Wire
3
Device Type
Single Receptacle Outlet
Terminal Accom.
14-10 AWG
Body Material
Thermoplastic Nylon
Dielectric Voltage
Withstands 2000V per UL498
UL498
File E13399
Current Limiting
Full Rated Current
Terminal Screws
Brass 10-32
Feature 4
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
