Shop HUBBELL WIRING DEVICE-KELLEMS

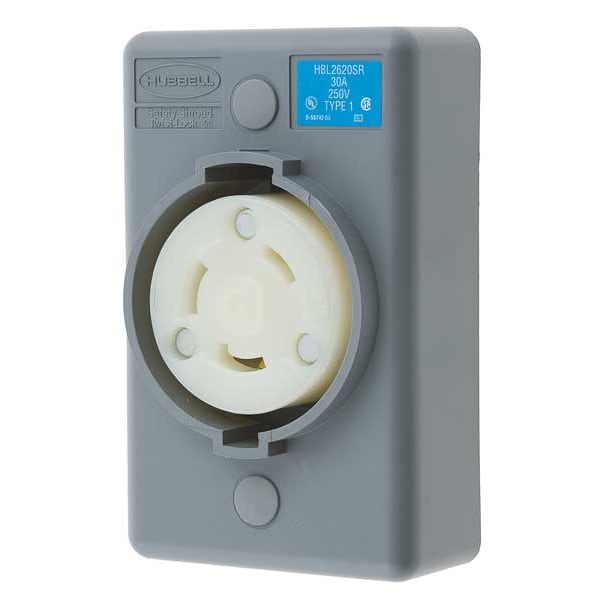

Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2620SR

  • Zoro # G3027875

product price:
$
54.41
/ea

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2620SR
Zoro #
G3027875
UPC #
783585234342
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray, White
Mount Type
Surface
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Material
Impact Modified PBT
Wiring Style
Standard
IP Rating
IP20
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Surface Mount
NEMA Enclosure Rating
12, 4X
Maximum Operating Temperature
167 Degrees F
Housing Material
Valox
Contact Material
Brass
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
For Environment
Dry
For Location
Indoor
Shrouded
Yes
Market
Industrial
Number of Gangs
1
Connection Orientation
Straight
AFCI
No
Flammability
VO or better
Lock Type
twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.031" Brass
Amps
30
UL 94 Flammability Rating
V-2

Description

The HUBBELL 30A Twist-Lock Receptacle L6-30R is a locking receptacle rated for 30 amps and 250V AC. It features a twist-lock mechanism intended to help maintain connection during operation. The device includes alignment arrows with lock/unlock symbols for visual confirmation of proper connection, and catalog number plus voltage rating remain visible during operation. Its thermoplastic housing is constructed from impact modified PBT (Valox), rated as corrosion resistant; intended for indoor use in dry locations.


Key Features of the HUBBELL 30A Twist-Lock Receptacle L6-30R:

  • NEMA Configuration: L6-30R; 2-pole, 3-wire; single phase

  • Current/Voltage Rating: Rated for 30 A at 250V AC

  • Housing Material: Impact modified PBT (Valox), corrosion resistant

  • Mounting Type: Surface mount; non-flanged design

  • Wire Connection Type: Screw terminals; accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard)

  • Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)

  • Horsepower Rating: Rated up to 2 hp

  • Flammability Rating: UL94 V-2 or better

  • IP/NEMA Enclosure Ratings: IP20, NEMA type 1 (for indoor use only)

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
