  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

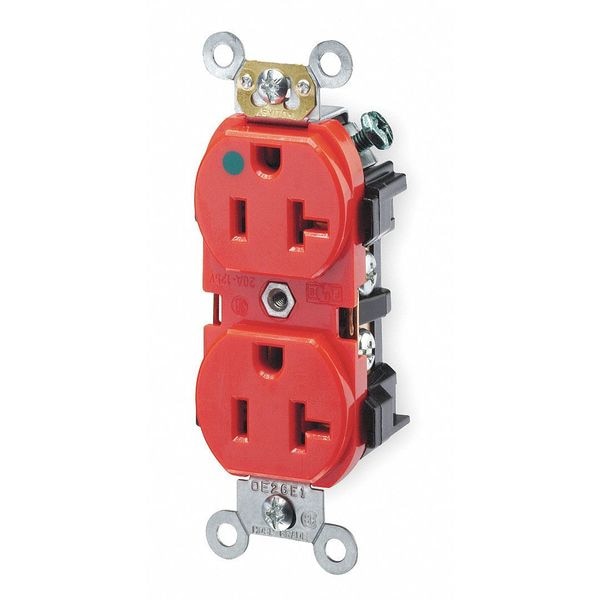

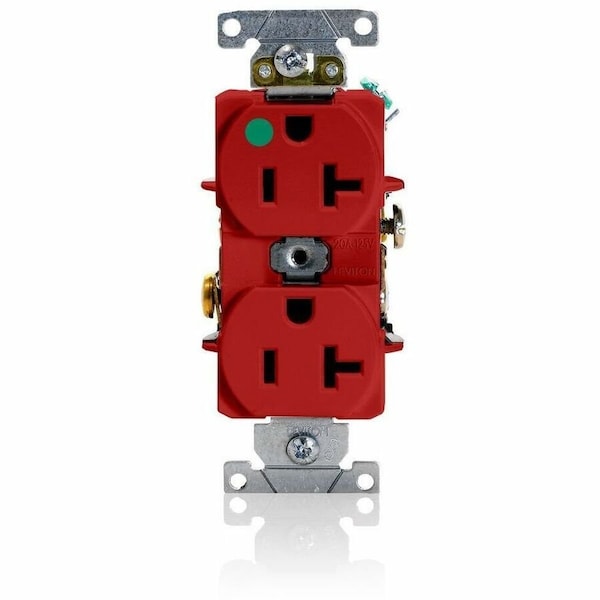

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red 8300-HR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # 8300-HR

  • Zoro # G004836435

product price: $8.69
/ea
Sold in multiples of 10 for $86.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-HR
Zoro #
G004836435
UPC #
07847781893
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
HP
1 hp
Application Environment
Heavy-Duty Hospital Grade
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body and Face)
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
GFCI
No
Grade
Hospital Grade Fed. Spec.
Contact Material
Phosphor Bronze
Cover Type
No Cover
Connection Orientation
Straight
Housing Material
Nylon
Polarized
Yes
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Wire
3
Device Type
Duplex Receptacle Outlet
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-2 per UL94
UL498HG
File E13399
Pole
2
Ground Clips
Brass
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Galvanized Steel with Riveted Ground Contacts
Current Limiting
Full Rated Current
Torque Range
14-16 inch pounds
Face Material
Nylon
Body Material
Nylon
Clamp Nuts
Zinc-Plated Steel
Grounding Screw
Brass
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Termination
Back or Side Wire
ANSI
C-73
Line Contacts
Phosphor Bronze
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
Screw Terminal Torque
14-18 in-lbs
UL Fed Spec WC-596
File E13399
CSA C22.2 No. 42
File 152105
Terminal Screws
Brass
Operating Temperature
-40°C to 60°C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
