  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

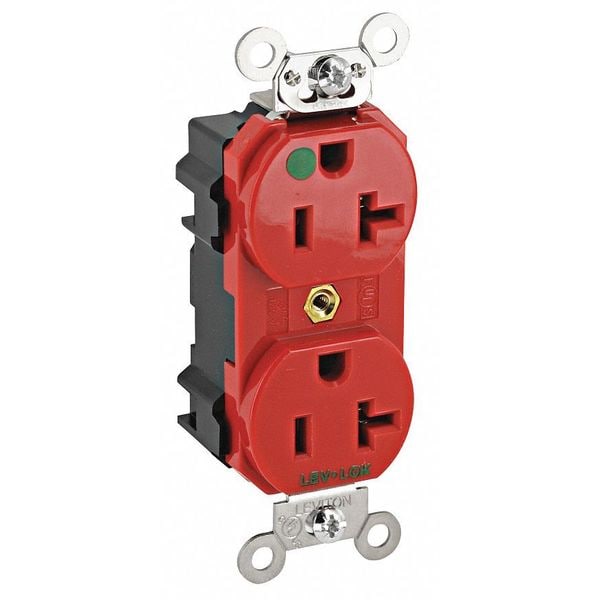

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red M8300-R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # M8300-R

  • Zoro # G804836536

product price: $15.59
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M8300-R
Zoro #
G804836536
UPC #
07847736388
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Modular
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Extra Heavy-Duty Hospital Grade
Includes
Wallplate
Material
Nylon (Base)
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Grade
Hospital Grade
GFCI
No
Connection Orientation
Straight
Number of Outlets
2
Polarized
Yes
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
