  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

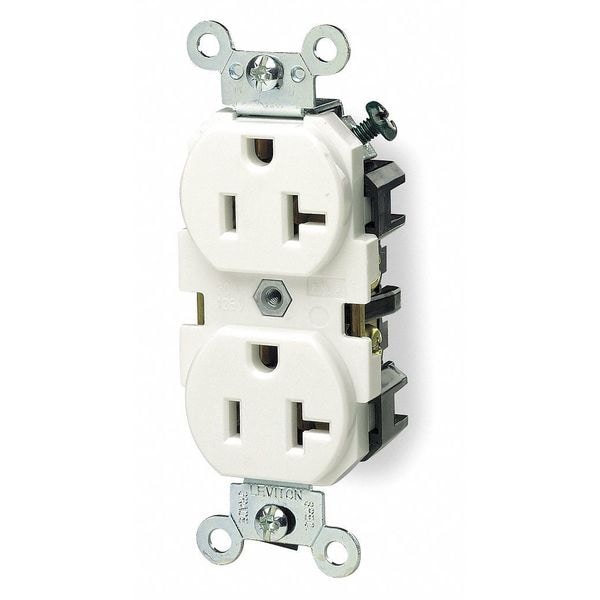

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 5362-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 5362-W

  • Zoro # G004393198

product price: $12.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-W
Zoro #
G004393198
UPC #
07847713952
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Extra Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Sub-Category
Duplex Receptacles
Grade
Federal Specification
Housing Material
Thermoplastic Nylon
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Polarized
Yes
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
UL 94 Flammability Rating
V-2
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Market
Commercial, Industrial
Connection Orientation
Straight
Body Material
Thermoplastic Nylon
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
CSA C22.2 No. 42
File 152105
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
14-10 AWG
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Brass 10-32
Wire
3
Feature
Smooth Face
Termination
Back and Side Wire
Face Material
Thermoplastic Nylon
Line Contacts
Brass Triple-Wipe
ANSI
C-73
Ground Clips
Brass-Plated
Operating Temperature
-40°C to 60°C
Pole
2
Grounding Screw
Brass 8-32
Current Limiting
Full Rated Current
UL498
File E13399
Strap Material
Brass
UL Fed Spec WC-596
File E13399
At Rated Voltage
1 HP
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
