  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

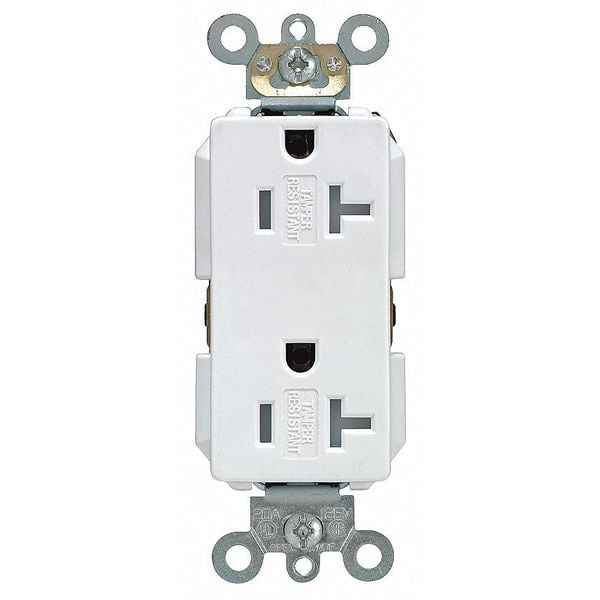

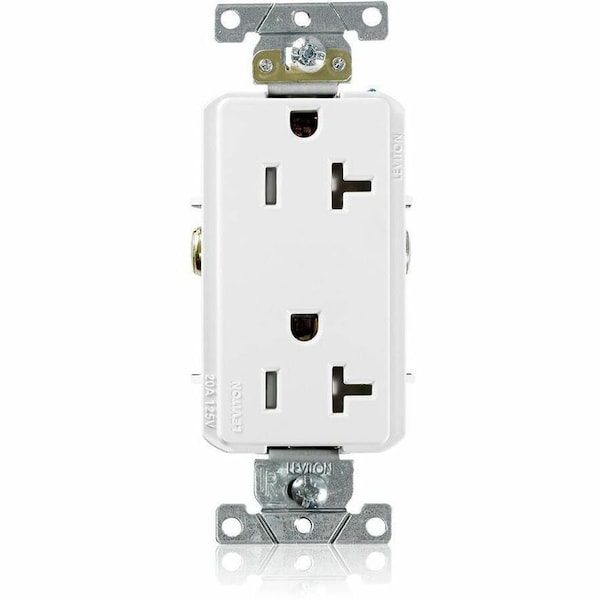

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White TDR20-542-00W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # TDR20-542-00W

  • Zoro # G404836455

product price: $11.69
/ea
Sold in multiples of 10 for $116.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR20-542-00W
Zoro #
G404836455
UPC #
07847738183
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Cover, Wallplate
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
HP
1 hp
Number of Outlets
2
Includes Mounting Hardware
Yes
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Connection Orientation
Straight
UL 94 Flammability Rating
V-0
Market
Industrial
Housing Material
PBT Polyester
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Polarized
Yes
Ground Clips
Brass
Dielectric Voltage
Withstands 3000 V minimum
ANSI
C-73
Terminal Clamps
Brass
Feature 4
Smooth Face
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Temperature Rise
Max 30 °C temperature rise at full rated current
Face Material
PBT Polyester Blend
Flammability
Rated HB or better UL94
Certification/Listing
cULus, NOM-ANCE
Mounting Screws
Triple-Drive Plated Steel
Wire
3
Terminal Accom.
#14 AWG - #10 AWG
Body Material
PBT Polyester Blend
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
#8 Triple-Drive Brass
Shutter Mechanism
Acetal
Wire Type
Stranded or Solid
Pole
2
Termination
Back or Side Wire
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Operating Temperature
-40°C to 60°C
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Strap Material
Steel (Galvanized G60)
Ground Contacts
0.030" Brass
Feature 2
Tamper-Resistant

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
