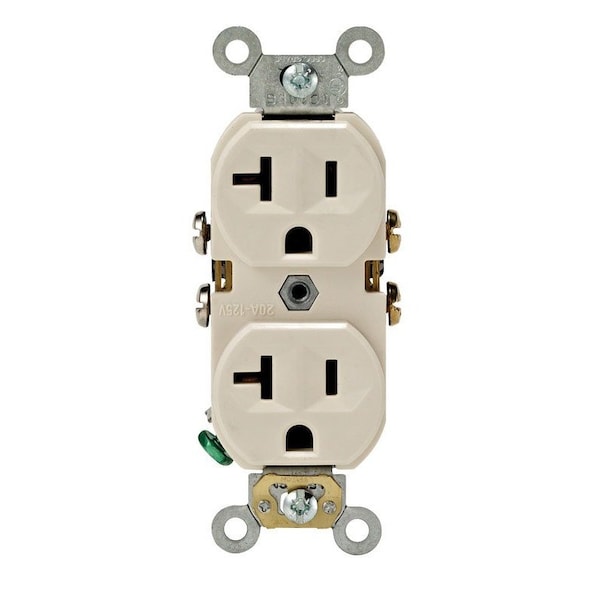

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Self-Grounded
Mfr # 0BR20-0TS
Zoro # G505305539
product price:
$
8.39
/ea
Key Features
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Number of Poles
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 0BR20-0TS
- Zoro #
- G505305539
- UPC #
- 78477440216
- Country of Origin
- United States
- Item
- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back, Side
- Grounding
- Self-Grounded
- Housing Color
- Light Almond
- Standards
- ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057 Certified, UL 498, UL Fed Spec WC-596
- Flange Type
- Non-Flanged
Description
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant etc. These Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- • For frequently used areas in the home
- • Heavy-duty brass power contacts for maximum conductivity and plug retention
- • All screws backed out contractor pack
- • Convenient washer-type break-off plaster ears for best flush alignment
- • Long lasting
- •
