  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, Flush Mount, Self-Grounded

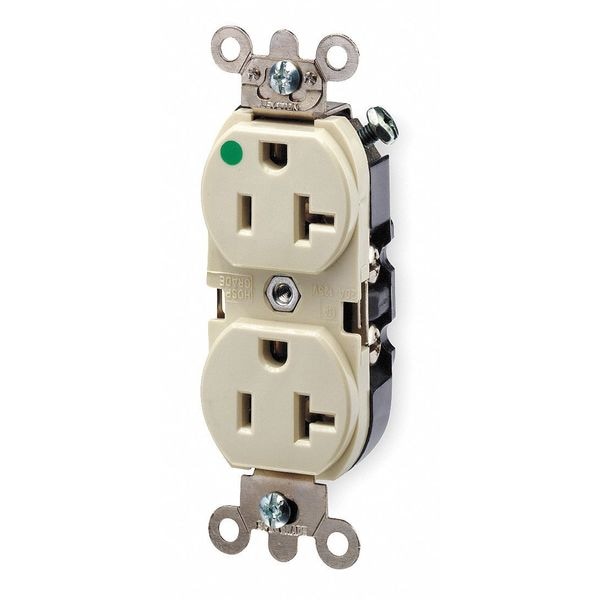

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, Flush Mount, Self-Grounded 8300-HLI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, Flush Mount, Self-Grounded

  • Mfr # 8300-HLI

  • Zoro # G004836480

product price: $12.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-HLI
Zoro #
G004836480
UPC #
078477057261
Country of Origin
United States

Dimensions

Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.4 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Special Features
Illuminated
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
Number of Gangs
1
Application Environment
Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Cover Type
No Cover
GFCI
No
Horsepower Rating
1 hp
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Number of Outlets
2
UL 94 Flammability Rating
V-2
Grade
Hospital
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees F
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-18 in-lbs
Yoke
Zinc-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Back or Side Wire
Flammability
Rated V-2 per UL94
Wire
3
Grounding Screw
Steel 8-32
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Feature 3
Illuminated
Feature 4
Smooth Face
Body Material
Nylon
Torque Range
14-16 inch pounds
Terminal Accom.
14-10 AWG
At Rated Voltage
1 HP
Pole
2
Line Contacts
Phosphor Bronze
Current Limiting
Full Rated Current
Clamp Nuts
Zinc-Plated Steel
CSA C22.2 No. 42
File 152105
Face Material
Nylon
Ground Clips
Nickel-Plated Brass
Strap Material
Steel
Terminal Screws
Brass
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Dielectric Voltage
Withstands 2000V per UL498
UL Fed Spec WC-596
File E13399
UL498HG
File E13399

Description

Receptacle, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase 1, Standards UL Listed 498HG File E13399, UL Fed Spec WC-596 File E13399, CSA C22.2 No. 42 File 152105, ANSI C-73, NEMA WD-6, NOM 057, Wiring Method Back and Side
