  11. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

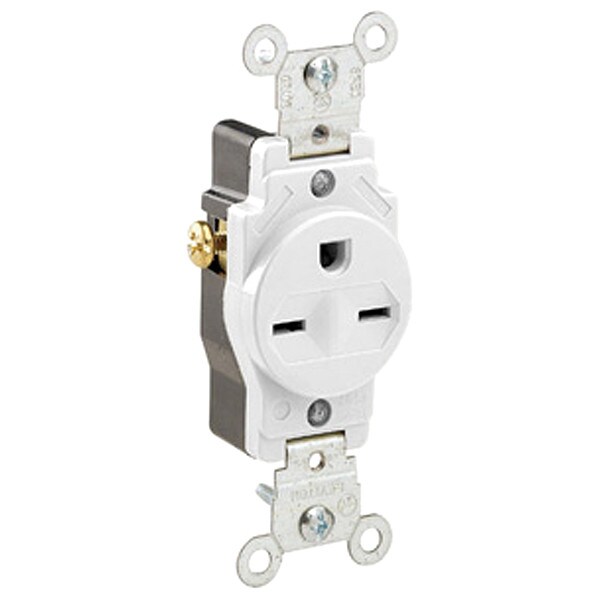

Leviton Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5029-W - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5029-W

  • Zoro # G804256037

product price: $4.49
/ea
Sold in multiples of 2 for $8.98

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5029-W
Zoro #
G804256037
UPC #
06867912334
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
HP
1 1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Material
Nylon (Body and Face)
Sub-Category
Single Receptacles
Number of Outlets
1
Cover Type
No Cover
Market
Commercial
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
GFCI
No
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
UL 94 Flammability Rating
V-2
Horsepower Rating
1 1/2 hp
Includes
Strap Material
Grade
Federal Specification
Contact Material
Brass
Line Contacts
Brass Triple Wipe .031 Thick
Body Material
Nylon
Grounding Screw
Brass 8-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.
14-10 AWG
Current Limiting
Full Rated Current
Flammability
Rated V-2 per UL 94
CSA C22.2 No. 42
File 152105
Operating Temperature
-40°C to 60°C
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Termination
Side Wire
Device Type
Single Receptacle Outlet
ANSI
C-73
UL498
File E13399
Face Material
Nylon
Dielectric Voltage
Withstands 2000V per UL498
At Rated Voltage
1-1/2 HP
Strap Material
Zinc-Plated Steel
Terminal Screws
Brass 8-32
Feature 4
Smooth Face
Wire
3
Pole
2
Screw Terminal Torque
14-18 in-lbs

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
