  11. Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

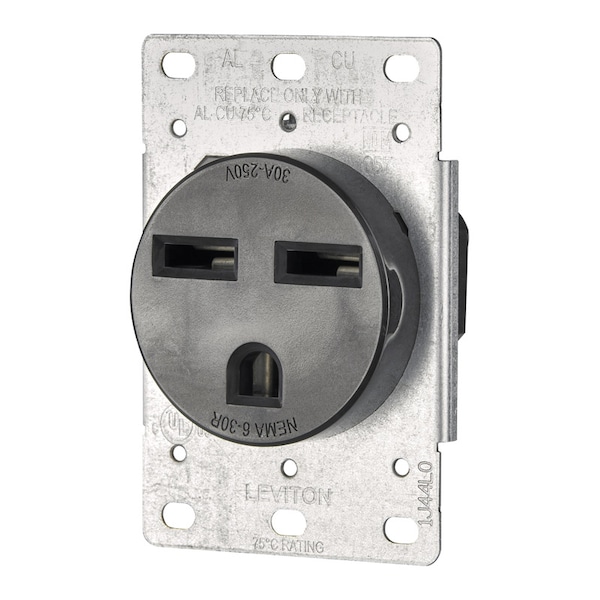

Leviton Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 05372-S00 - main

Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 05372-S00

  • Zoro # G3858746

product price: $16.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
05372-S00
Zoro #
G3858746
UPC #
78477695395
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057 Certified, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Wire
3
Body Material
Polypropylene
Flammability
Rated V-2 per UL 94
UL
UL 498, UL 486E
CSA
22.2 No 42, C22.2 No.14, C22.2 No.65
ANSI
C73
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
At Rated Voltage
2 HP
Operating Temperature
-40°C to 60°C
Pole
2
Strap Material
Galvanized Steel
Dielectric Voltage
Withstands 2000V per UL498
Line Contacts
Brass Double-Wipe
Terminal Accom.
#4 AWG
Terminal ID
Brass screws = Hot; Green screw = Ground
Current Limiting
Full Rated Current
Face Material
Polypropylene

Description

Built of durable thermoplastic, Leviton Power Receptacles come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton's wide range of 2.15-inch diameter wallplates and mounting hardware is included.


  • • Flush mount
  • • Side wired
  • • Steel strap material
  • •
  • •
