Shop LEVITON

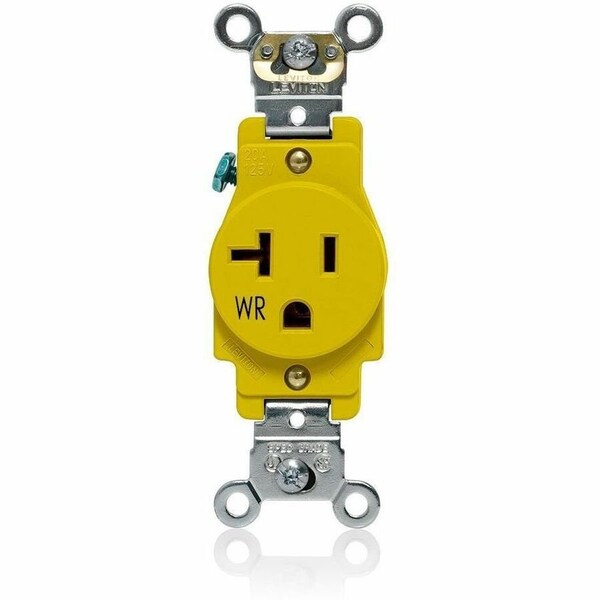

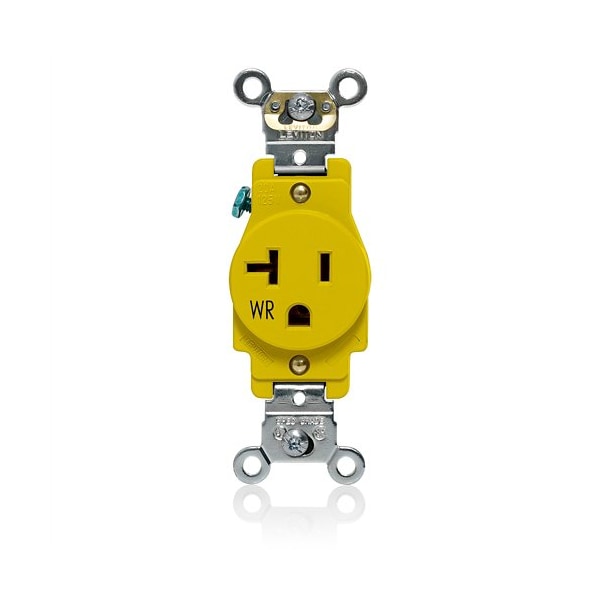

StrghtBladeRcptcl, 20A, 125VAC, Ylw, Nylon

  • Mfr # W5361-Y

  • Zoro # G422729548

product price:
$
24.79
/ea

Key Features

Maximum Wire Size
10 AWG
Number of Gangs
1
Minimum Wire Size
14 AWG
Number of Poles
2
Current Rating
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W5361-Y
Zoro #
G422729548
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Number of Gangs
1
Number of Poles
2
Current Rating
20 A
Receptacle Type
Single
Resistance Properties
Weather Resistant
Voltage Rating
125V AC
Horsepower Rating
1 hp
Maximum Operating Temperature
75 Degrees C
GFCI
No
IP Rating
Not Rated
Phase
Single
Surge Protection
No
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Contact Material
Brass
Market
Commercial, Industrial
Number of Outlets
1
Receptacle Face Type
Smooth
Standards
CSA C22.2 No. 42, Fed. Spec. W-C-596, NOM, UL 498
Grounding
Grounded
Shrouded
No
Mount Type
Flush
NEMA Receptacle Configuration
5-20R
NEMA Enclosure Rating
Not Rated
Number of Wires
3
Wiring Method
Back/Side
Minimum Operating Temperature
-40 Degrees C
AFCI
No
Flange Type
Non-Flanged
Cover Type
No Cover
Housing Material
Nylon
Number of Wall Plates Included
0
Polarized
Yes
Item
Straight Blade Receptacle
Grade
General Use
Features
Brass Self-Grounding Clip is Permanently Staked On for Secure and Reliable Performance, Internal Wiring Clamps Allow for Back and Side Wiring, and a Fast, Easy Installation, Nickel-Plated Straps and Stainless Steel Screws

Description

Straight Blade Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Weather Resistant, Standards CSA C22.2 No. 42, Fed. Spec. W-C-596, NOM, UL 498
