  11. Surge Suppressers Supprs Surg Ig15Ahos Iv

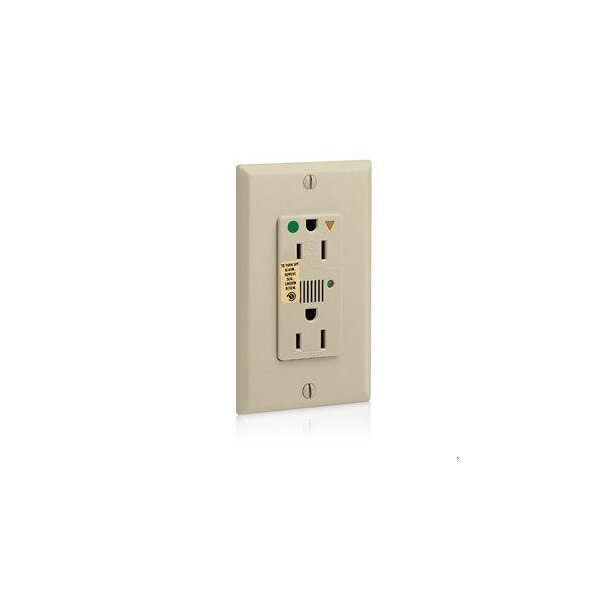

Leviton Surge Suppressers Supprs Surg Ig15Ahos Iv 8280-IGI - main

Surge Suppressers Supprs Surg Ig15Ahos Iv

  • Mfr # 8280-IGI

  • Zoro # G0824629

product price: $64.19
/ea

Key Features

Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8280-IGI
Zoro #
G0824629
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
1.6 in
Mount Hole Center-to-Center Height
3.8 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Face Plate Width
1.8 in
Maximum Wire Size
10 AWG
Overall Depth
1.6 in

Details

Item
Surge Suppressor
Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
Number of Wires
3 Wires + Isolated Ground
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
27kA
Max. Surge Current per Phase
27kA
Nominal Discharge Current
3 kA
Short Circuit Current Rating
5kA
Filtering
Yes
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
Not Rated
Enclosure Material
Nylon
Includes
Mounting Hardware
Standards
ANSI C73, CSA Certified C22.2 Certified Type 3, UL 1449 3rd Edition Listed, UL 498, UL 498HG File E13399
Number of Outlets
2
NEMA Receptacle Configuration
NEMA 5-15R
Visual Indicator Lights
Power Connected
Contact Material
Brass
Voltage Rating
125V AC
Maximum Surge Current
27 kA
For Location
Outdoor
Receptacle Type
Duplex
Current Rating
15 A
Housing Material
Nylon
Grounding
Grounded, Isolated Ground
Maximum Operating Temperature
140 Degrees F
Wiring Method
Back, Side
Market
Commercial, Industrial, Residential
Includes Mounting Hardware
Yes
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Surge Protection
Yes
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
Housing Color
Ivory
Wire Connection Type
Screw Terminals
GFCI
No
NEMA Enclosure Rating
Not Rated
Mount Type
Surface
Polarized
Yes
AFCI
No
Flange Type
Non-Flanged
Number of Gangs
1
Hub Type
Feed Through
Shrouded
Yes
Cover Type
No Cover
Wire Gauge
14-10 AWG

Description

Straight Blade Decora Duplex Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
