  11. Surge Suppressers Supprss Surge 15Ahos Wh

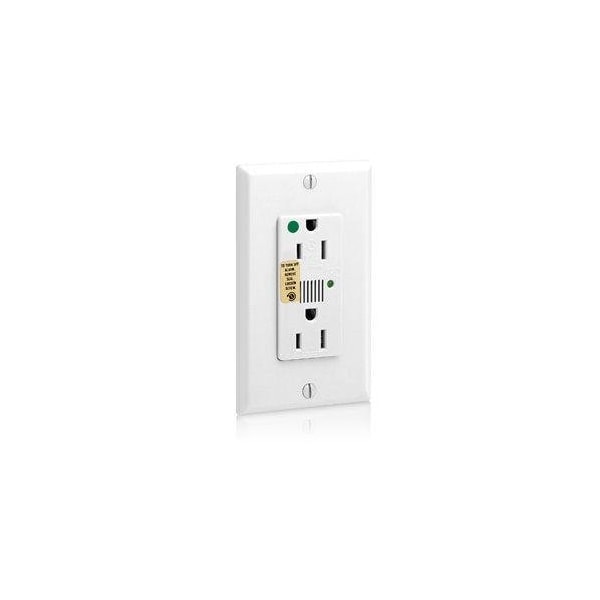

Leviton Surge Suppressers Supprss Surge 15Ahos Wh 8280-W - main

Surge Suppressers Supprss Surge 15Ahos Wh

  • Mfr # 8280-W

  • Zoro # G0824665

product price: $52.19
/ea

Key Features

Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8280-W
Zoro #
G0824665
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
1.6 in
Overall Depth
1.6 in
Maximum Wire Size
10 AWG
Face Plate Width
1.8 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.8 in

Details

Item
Surge Suppressor
Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
Number of Wires
3 Wires + Ground
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
27kA
Max. Surge Current per Phase
27kA
Nominal Discharge Current
3 kA
Short Circuit Current Rating
5kA
Filtering
Yes
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
Not Rated
Enclosure Material
Nylon
Includes
Mounting Hardware
Standards
ANSI C73, CSA Certified C22.2 Certified Type 3, UL 1449 3rd Edition Listed, UL 498, UL 498HG File E13399
NEMA Receptacle Configuration
NEMA 5-15R
Number of Outlets
2
Surge Protection
Yes
Voltage Rating
125V AC
Market
Commercial, Industrial, Residential
Minimum Operating Temperature
-40 Degrees F
Housing Color
White
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
Housing Material
Nylon
Connection Orientation
Straight
Grounding
Grounded
Maximum Surge Current
27 kA
Receptacle Type
Duplex
For Location
Outdoor
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Wiring Method
Back, Side
Grade
Hospital Grade
Current Rating
15 A
Wire Connection Type
Screw Terminals
Visual Indicator Lights
Power Connected
Cover Type
No Cover
Mount Type
Surface
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Hub Type
Feed Through
AFCI
No
Number of Gangs
1
Flange Type
Non-Flanged
GFCI
No
Polarized
Yes
Wire Gauge
14-10 AWG

Description

Straight Blade Decora Duplex Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
