  6. Surge Suppressor, 125V, 2 Poles, 3 Wires + Self-Ground

This item is Discontinued.

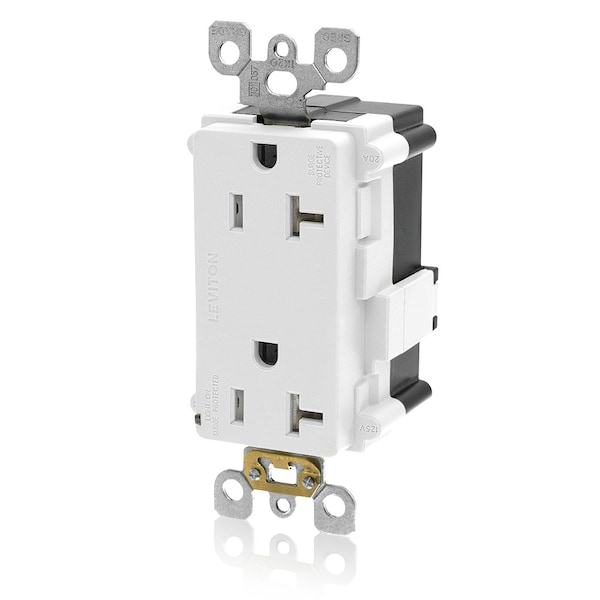

Leviton Surge Suppressor, 125V, 2 Poles, 3 Wires + Self-Ground MT538-W

Surge Suppressor, 125V, 2 Poles, 3 Wires + Self-Ground (Discontinued)

  • Mfr # MT538-W
  • Zoro # G4064287
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT538-W
Zoro #
G4064287
UPC #
078477522004
Country of Origin
Mexico

Dimensions

Length
2 1/4 in
Depth
4 1/4 in
Width
2 in

Details

Item
Surge Suppressor
Voltage
125V
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
Number of Wires
3 Wires + Self-Ground
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
9kA (L-G, N-G), 18kA (L-N)
Short Circuit Current Rating
5kA
Modular
Yes
Filtering
Yes
Enclosure Material
Polycarbonate
Type
Tamper-Resistant Surge Protective Duplex Receptacle
Application
Commercial
Color
White
Operating Temperature
-10°C to 60°C
ANSI
C-73
Diagnostics
Indicator Light
Termination
Modular
Lead Identification
Leads identified in accordance with UL 498
Locking Pins
Solid Brass
Joules Rating
720
Device Type
Duplex Receptacle Outlet
Flammability
Rated V-0 per UL 94
SCCR
5000A
Face Material
Nylon
Amperage
20 A
Function
Surge Protective
Strap Material
Zinc-Plated Steel
Tamper Resistant Shutter Mechanism
Derlin® Acetal
Grade
Commercial Specification Grade
Noise Rejection
-30dB at 500kHz-30MHz
Line Contacts
Brass Triple-Wipe
Frequency
50/60Hz
Feature
Tamper-Resistant
NEMA
WD-1 & WD-6
Ground Clips
Brass-Plated Steel
Standard
UL/CSA

Description

20A 125V Lev-Lok Tamper-Resistant Surge Protective Decora Duplex Receptacle Indicator Light Non-Alarmed Commercial Grade - WHITE
