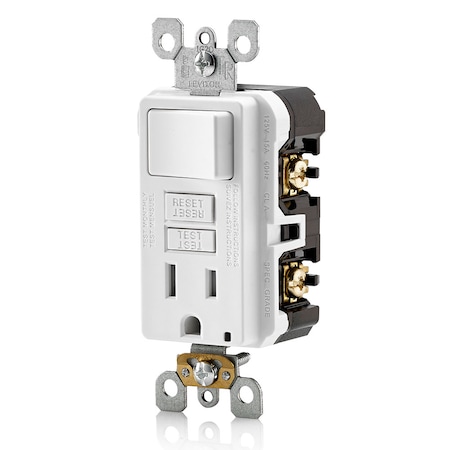

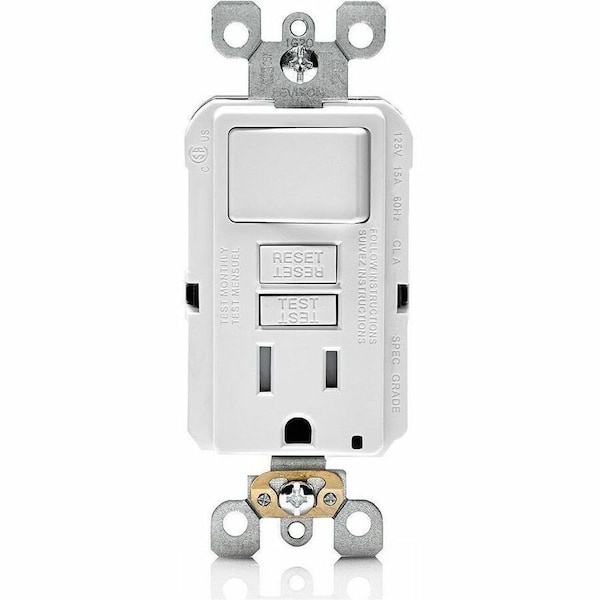

Leviton Switch, GFCI Receptacle, 125Vac, 5-15R GFSW1-W - main

Switch, GFCI Receptacle, 125Vac, 5-15R

  • Mfr # GFSW1-W

  • Zoro # G3836324

product price: $49.16
/ea

Key Features

GFCI
UL 943, CSA-C22.2 No. 144.1-06 Class A
Material
Polycarbonate/Thermoplastic
Amps
15
Type
Rocker
HP
1.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSW1-W
Zoro #
G3836324
UPC #
78477714768
Country of Origin
Unknown

Dimensions

Width
6.19 in
Height
4.2500 in
Length
4.00 in
Dimensions
4.21 in H x 1.69 in W x 1.32 in D
Wire Size
14 to 10 AWG

Details

Item
Combination Device
GFCI
UL 943, CSA-C22.2 No. 144.1-06 Class A
Material
Polycarbonate/Thermoplastic
Amps
15
Type
Rocker
HP
1.0
Voltage
120VAC
Color
White
NEMA Configuration
5-15R
Tamper Resistant
Yes
Description/Special Features
Switch/GFCI Receptacle
Wiring Combination
Switch/GFCI Receptacle
Application
Commercial
Amperage
15 A
Receptacle
UL 498, CSA-C22.2 No. 42
Grounding Screw
Plated Steel
Yoke
Galvanized Steel
Terminal Screws
Plated Steel
Wire
3
Switch
UL 20, CSA-C22.2 No. 111
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Operating Temperature
-35C to +66C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Body Material
Polycarbonate
Short Circuit Current Rating
10KA
Feature
Self-Test
cCSAus
Certified (File # LR-57811)
Face Material
Thermoplastic
Grade
Residential/Commercial Specification Grade
NEMA
5-15R
Torque Range
14-18 in.-lbs
Termination
Back & Side
Trip Level
Class A, 5mA plus or minus 1mA
Line Contacts
Brass Double-Wipe .031 Thick
Standards and Certifications
CSA, NEMA WD6, NEMA WD1
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Strap Material
Galvanized Steel
Clamps
Brass
Terminal Accom.
10-14 AWG
Feed-Through Current
20 A
Standard
UL/CSA
Mounting
Wall
Enclosure
NEMA 5-15R
Grounding Style
Self-Grounding
Terminal Type
Screw
Dielectric Strength
1250 VAC
Electrical Ratings
125 VAC, 15 A
Voltage Rating
125 V

Description

15A-125V, Tamper-Resistant, Self-test SmartlockPro Combination GFCI single receptacle/outlet with a switch, without wallplate/faceplate, monochromatic – WHITE
