Taper Nose Cam, 190 A
Mfr # 16D45-UE
Zoro # G216091486
product price: $34.39
/eaKey Features
Current Rating
190 A
Standards
CSA, NEC, UL
Voltage Rating
600V AC
Maximum Operating Temperature
185 Degrees F
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16D45-UE
Zoro #
G216091486
UPC #
078477720950
Country of Origin
Mexico
Dimensions
Minimum Wire Size
6 AWG
Maximum Wire Size
2 AWG
Details
Current Rating
190 A
Item
Taper Nose Cam
Standards
CSA, NEC, UL
Voltage Rating
600V AC
Maximum Operating Temperature
185 Degrees F
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
For Location
Indoor, Outdoor
Housing Material
Santoprene TPV
End Type
Taper Nose
Contact Material
Brass
Terminal Connection Type
Double Set Screw
Housing Color
Black
Contact Type
Single Cam
UL 94 Flammability Rating
HB
NEMA Enclosure Rating
3R
Gender
Female
Minimum Operating Temperature
-40 Degrees F
Description

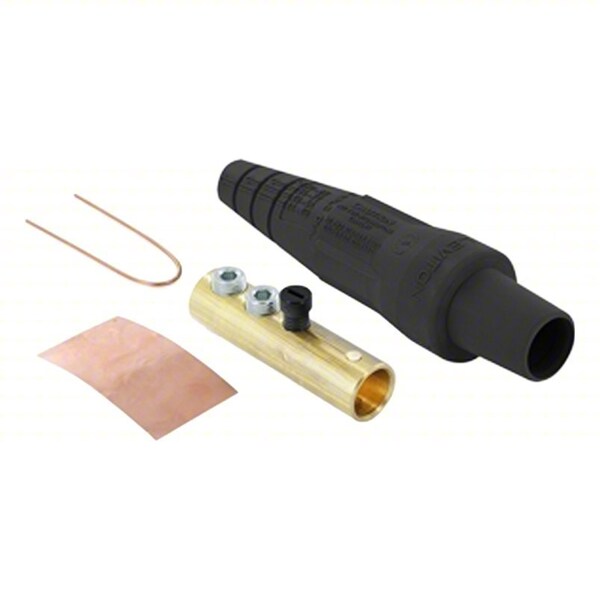

Taper Nose Cam-Type Female Plug
