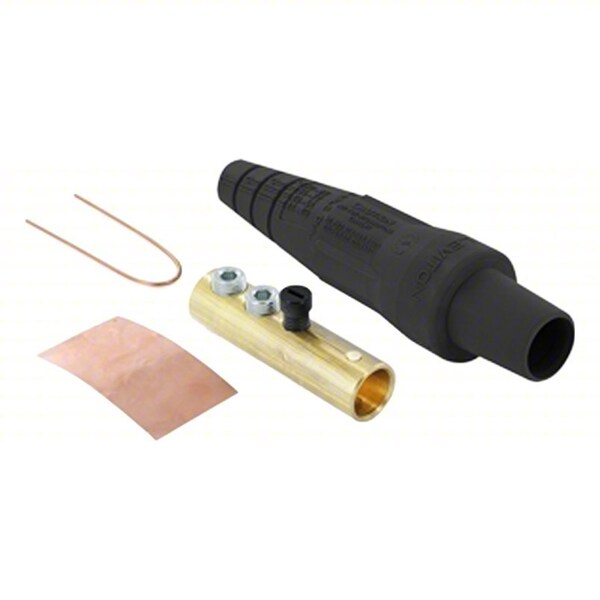

Taper Nose Cam, 190 A
Mfr # 16D45-UW
Zoro # G516091544
product price: $37.69
/eaKey Features
Current Rating
190 A
Voltage Rating
600V AC
Standards
CSA, NEC, UL
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Terminal Connection Type
Double Set Screw
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16D45-UW
Zoro #
G516091544
UPC #
078477720912
Country of Origin
Mexico
Dimensions
Maximum Wire Size
2 AWG
Minimum Wire Size
6 AWG
Details
Current Rating
190 A
Voltage Rating
600V AC
Item
Taper Nose Cam
Standards
CSA, NEC, UL
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Terminal Connection Type
Double Set Screw
Contact Material
Brass
Maximum Operating Temperature
185 Degrees F
End Type
Taper Nose
Housing Material
Santoprene TPV
Gender
Female
Housing Color
White
UL 94 Flammability Rating
HB
Contact Type
Single Cam
NEMA Enclosure Rating
3R
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor, Outdoor
Description
Taper Nose Cam-Type Female Plug
