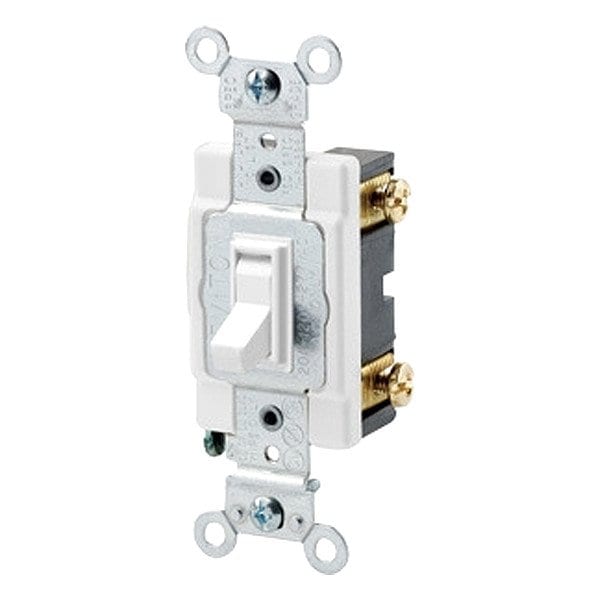

Toggle Framed Single-Pole, 20 Amp

Mfr # 54521-2W
Zoro # G022982084

Key Features

Overall Height

4.1 in

Market

Commercial

Maximum Operating Temperature

65 Degrees C

Housing Material

Thermoplastic

Standards

ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 54521-2W
Zoro #: G022982084
UPC #: 078477125175
Country of Origin: Mexico

Dimensions

Overall Height: 4.1 in
Maximum Wire Size: 12 AWG
Overall Width: 1.3 in
Minimum Wire Size: 14 AWG

Details

Item: Toggle Framed Single-Pole, 20 Amp
Market: Commercial
Maximum Operating Temperature: 65 Degrees C
Housing Material: Thermoplastic
Standards: ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
Strap Material: Steel
Contact Material: Silver Alloy
Wire Connection Type: Screw Terminals
Minimum Operating Temperature: -40 Degrees C
Horsepower Rating: 1 hp
Wiring Method: Side
Switch Type: Single Pole
Switch Material: Thermoplastic
Number of Switches: 1
Grounding: Grounded
Features: 10-Year Limited, Withstands 1,500V for 1 minute
Current Rating: 20 A
Voltage Rating: 120/277V AC
Color: White
Illuminated: No
Switch Function: Maintained

Description

Toggle Framed Single-Pole, 20 Amp, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle
