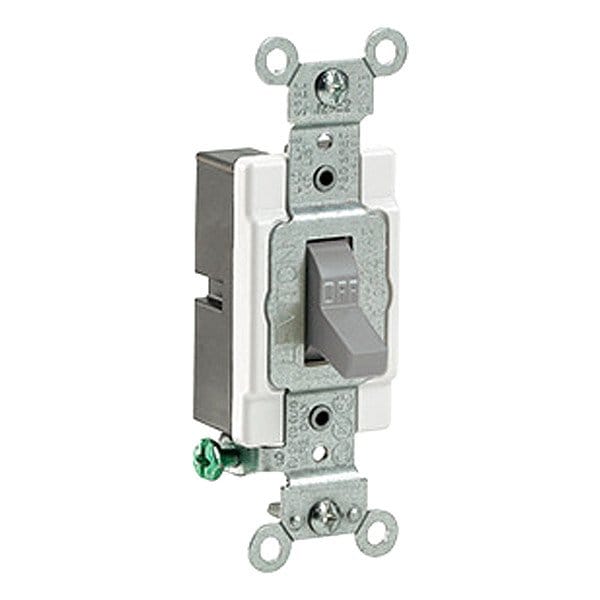

Toggle Single-Pole, 15 Amp
- Mfr # CS120-2GY
- Zoro # G822982383
product price:Â
$
4.49
/ea
Key Features
Maximum Wire Size
12 AWG
Switch Material
Thermoplastic
Voltage Rating
120/277V AC
Minimum Wire Size
14 AWG
Standards
ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CS120-2GY
- Zoro #
- G822982383
- UPC #
- 078477815731
- Country of Origin
- United States
- Switch Material
- Thermoplastic
- Voltage Rating
- 120/277V AC
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Strap Material
- Steel
- Current Rating
- 20 A
- Maximum Operating Temperature
- 65 Degrees C
- Market
- Commercial
- Horsepower Rating
- 1 hp
- Housing Material
- Thermoplastic
- Switch Type
- Single Pole
- Contact Material
- Silver Alloy
- Wire Connection Type
- Screw Terminals
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Grounding
- Grounded
- Minimum Operating Temperature
- -40 Degrees C
- Item
- Toggle Single-Pole, 15 Amp
- Switch Function
- Maintained
- Number of Switches
- 1
- Illuminated
- No
- Color
- Gray
- Wiring Method
- Side
Description
Toggle Single-Pole, 15 Amp, Color Gray, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
