Shop LEVITON

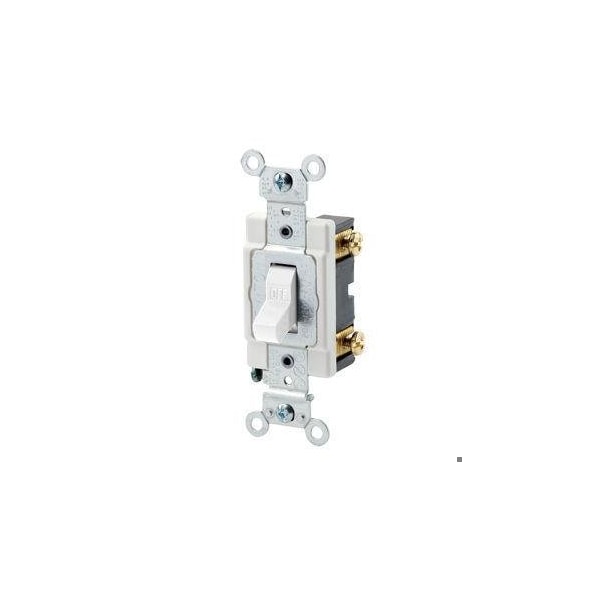

Toggle Switch 15A 120 277V Sp Toggle White

  • Mfr # CSB1-15W

  • Zoro # G3509436

product price:  $5.89
/ea
Sold in multiples of 10 for $58.90

Key Features

Switch Function
Maintained
Switch Style
Toggle
Wiring Method
Back/Side
Standards
ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB1-15W
Zoro #
G3509436
UPC #
-
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Height
4.1 in
Mount Hole Center-to-Center Height
2.4 in
Overall Width
1.3 in

Details

Switch Function
Maintained
Item
Wall Switch
Switch Style
Toggle
Wiring Method
Back/Side
Standards
ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant
Color
White
Switch Type
Single Pole
Features
10-Year Limited
Current Rating
15 A
Market
Commercial, Industrial
Horsepower Rating
2 hp
For Environment
Industrial
Strap Material
Steel
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Contact Material
Tin-Plated Brass
Housing Material
Thermoplastic
Voltage Rating
120/277V AC
Maximum Operating Temperature
149 Degrees F
Illuminated
No
Number of Switches
1
Pilot Light
No
Nightlight
No

Description

Wall Switch, Color White, Current Rating 15 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 2.4 in, Nightlight No, Number of Switches 1, Standards ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant, Strap Material Steel, Switch Style Toggle
