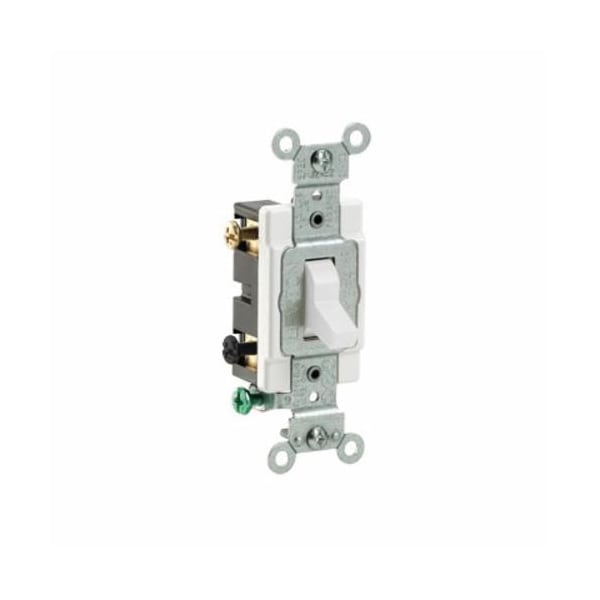

Toggle Switch 20A 120 277V 2P Tgl White

  • Mfr # CS220-2W
  • Zoro # G4061426
product price:
$
12.65
/ea

Key Features

Connection
Side Wired
Color
White
Body Material
Thermoplastic
Voltage
120V AC, 277V AC
Mounting
Box
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS220-2W
Zoro #
G4061426
UPC #
78477815786
Country of Origin
United States

Dimensions

Height
5.2500 in
Dimensions
46 in H x 1.31 in W x 0.92 in D
Length
7.2500 in

Details

Connection
Side Wired
Color
White
Body Material
Thermoplastic
Voltage
120V AC, 277V AC
Mounting
Box
Toggle
Polycarbonate
Strap Material
Steel
CSA C22.2 No. 111
File #152105
Torque Range
12-14 inch pounds
ANSI
C-73
Termination
Side Wire
Grade
Commercial Specification Grade
Dielectric Voltage
Withstands 1500V for 1 minute
Amperage
20 A
Temperature Rise
Maximum 30 degrees C rise
HP Rating
1HP-120V 2HP-240V-277V
Contacts
Silver-Cadmium .031 Thick
Operating Temperature
-40°C to 65°C
Flammability
Rated V-2 per UL94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Device Type
Toggle Switch
Base Material
PBT
UL Fed Spec WS896E
File #E7458
NEMA
WD-1 & WD-6
Max. Amperage
16 Amp
Function
Double-Pole
Actuator Material
Thermoplastic
Terminal Screws
Steel 8-32
Cover Material
Nylon
UL Standard
UL 20
Terminal Accom.
14-12 AWG
Environmental Conditions
Flammability (Rated V-2 per UL94)
Power Rating
800 W, 1000 VA
Number of Poles
2
Terminal Type
Side Wired
Actuator
Toggle
Application
Commercial
Enclosure
NEMA WD-1/WD-6
Contact Configuration
DP
Action
DP
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)

Description

20-Amp, 120/277-Volt, Toggle Double-Pole AC Quiet Switch, Commercial Grade, White
