  13. Toggle Switch 20A 120 277V Comm Grd Tgl La

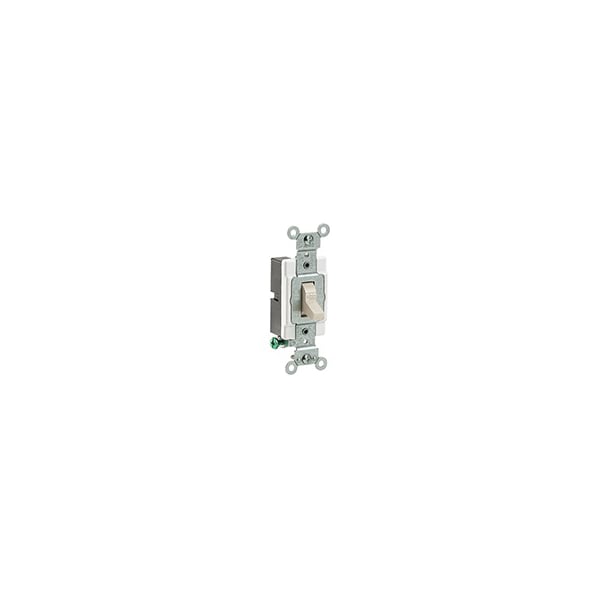

Leviton Toggle Switch 20A 120 277V Comm Grd Tgl La CS120-2T - main

Toggle Switch 20A 120 277V Comm Grd Tgl La

  • Mfr # CS120-2T

  • Zoro # G4047496

product price: $4.15
/ea
Sold in multiples of 2 for $8.30

Key Features

Mounting
Box
Body Material
Thermoplastic
Color
Light Almond
Height
10.5000 in
Connection
Side Wired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS120-2T
Zoro #
G4047496
UPC #
78477273050
Country of Origin
United States

Dimensions

Height
10.5000 in
Dimensions
46 in H x 1.31 in W x 0.92 in D
Length
17.2500 in

Details

Mounting
Box
Body Material
Thermoplastic
Color
Light Almond
Connection
Side Wired
Voltage
120/277 VAC
Grounding
Grounding
Termination
Side Wire
HP Rating
1HP-120V 2HP-240V-277V
Standards and Certifications
UL/CSA
Max. Amperage
16 Amp
Grade
Commercial Specification Grade
Device Type
Toggle Switch
Actuator Material
Thermoplastic
Function
Single-Pole
Amperage
20 A
Screw Terminal Torque
14-18 in-lbs
Strap Material
Steel
Environmental Conditions
Flammability (Rated V-2 per UL94)
Action
SP
Application
Commercial
Operating Temperature
-40 to +120 °C
Power Rating
800 W, 1000 VA
Terminal Type
Side Wired
Contact Configuration
SP
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Actuator
Toggle
Number of Poles
1
Enclosure
NEMA WD-1/WD-6

Description

20-Amp, 120/277-Volt, Toggle Single-Pole AC Quiet Switch, Commercial Grade, Grounding, Light Almond
