  11. Universal Dimmer, 1-Pole/3-Way, 120VAC

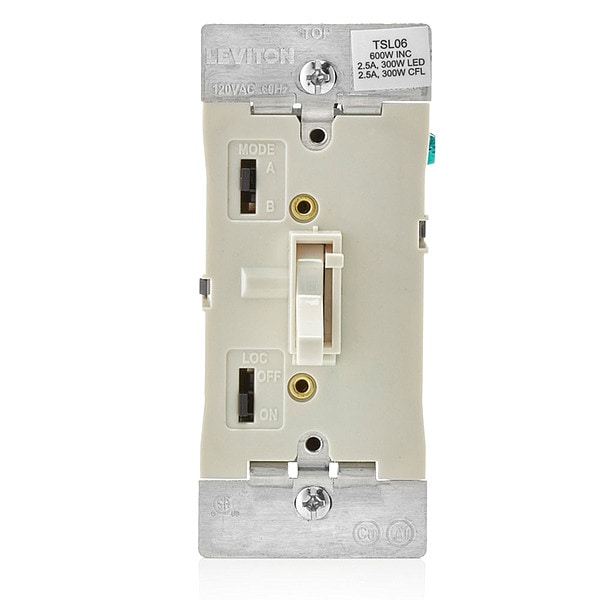

Leviton Universal Dimmer, 1-Pole/3-Way, 120VAC TSL06-1LT - main

Universal Dimmer, 1-Pole/3-Way, 120VAC

  • Mfr # TSL06-1LT

  • Zoro # G604392850

product price: $24.59
/ea

Key Features

Item - Motion Sensing and Dimming
Universal Dimmer
Switch Style - Motion Sensing and Dimming
Slide, Toggle
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TSL06-1LT
Zoro #
G604392850
UPC #
078477771730
Country of Origin
China

Dimensions

Overall Width
1.75 in
Overall Height
4.1 in
Overall Depth
0.7 in

Details

Item - Motion Sensing and Dimming
Universal Dimmer
Switch Style - Motion Sensing and Dimming
Slide, Toggle
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
300W (CFL, LED), 600W (Halogen, Incandescent)
Color - Motion Sensing and Dimming
Light Almond
Switch Style
Toggle On/Off, Mini-Slide Dimming
Item
Lighting Dimmer
Standards
cCSAus, NOM
Switch Type
1-Pole, 3-Way
Wall Plate
Not Included
Color
Light Almond
Voltage
120V AC
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Installation Location - Motion Sensor
Wall Switch Box
Description/Special Features
Built-In Radio/TV Interference Filter, Compact, Programming Feature Allows Users to Modify the Dimming Range, Slim
Includes Wall Plate
Wall Plate Not Included
Dimming Type
Full Continuous Dimming
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
131 Degrees F
Number of Switches
1
Load Rating @ 120V AC
300W (CFL, LED), 600W (Halogen, Incandescent)
Illuminated
Yes
Series
ToggleSlide
Rated Frequency
60 Hz
Neutral Required
No
Protection
Radio/TV Filter
Torque Range
14 -“ 18 in.-lbs
Frequency
60 Hz
Load Type
Incandescent, Halogen, Dimmable LED, Dimmable CFL
Standards and Certifications
cCSAus, NOM
Available Colors
White, Ivory, Light Almond
Wallplate
Order Separately
Locator Light
Green locator light that can be disabled
Load Rating
600W Incandescent and Halogen, 300W LED and CFL
Action
Toggle Switch for ON/OFF, slide bar for lighting level control
Type
Electro-Mechanical
Style Name
Toggle Slide
Preset
Slide bar preserves desired lighting level
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 300W (CFL, LED), 600W (Halogen, Incandescent), Switch Style Toggle On/Off, Mini-Slide Dimming, Neutral Required No, Color Light Almond, Load Rating @ 277V AC Not Applicable, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series ToggleSlide, Illuminated Yes, Number of Gangs 1, Standards cCSAus, NOM

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
