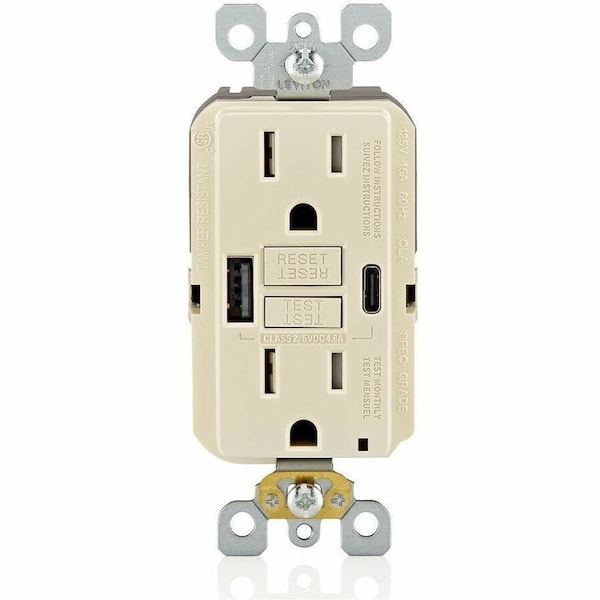

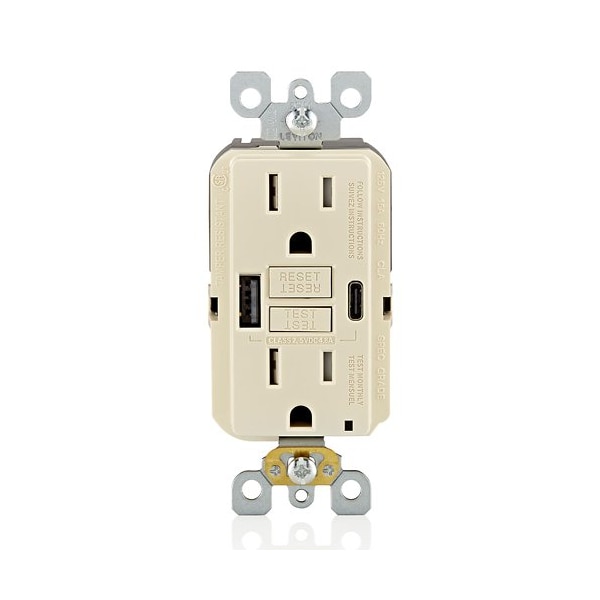

USBReceptacle, 15A, Almond, Thermoplastic

  • Mfr # GUAC1-T

  • Zoro # G322728801

product price:
$
55.59
/ea

Key Features

Market
Residential
Voltage Rating
125V AC
Maximum Charging Power per Port
24 W
Phase
Single
Receptacle Type
Decorator Duplex
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GUAC1-T
Zoro #
G322728801
UPC #
-
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.28 in
Overall Depth
2.11 in
Face Plate Height
2.6 in
Face Plate Width
1.29 in

Details

Market
Residential
Voltage Rating
125V AC
Maximum Charging Power per Port
24 W
Phase
Single
Receptacle Type
Decorator Duplex
Contact Material
Silver Alloy
Standards
ANSI, cCSAus, CSA C22.2 No. 144.1-06, UL 1310, UL 498, UL 943
UL 94 Flammability Rating
5VA
USB Standard
1.1, 2.0, 3.0, 3.1
USB Connection Type
A, C
Includes
Screws, Self-Grounding Clip
Power Indicating Light
Yes
Current Rating
15 A
GFCI
Yes
Grounding
Grounded
Wire Connection Type
Wire Leads
Horsepower Rating
1/2 hp
Number of Wires
2
NEMA Receptacle Configuration
5-15R
Wiring Method
Back/Side
Maximum Operating Temperature
40 Degrees C
Housing Color
Light Almond
Item
USB Receptacle
Number of Poles
2
Minimum Operating Temperature
-10 Degrees C
Surge Protection
No
IP Rating
Not Rated
Number of Outlets
2
Resistance Properties
Tamper Resistant
Number of Wall Plates Included
0
Mount Type
Flush
Series
Any manufacturer
Housing Material
Thermoplastic

Description

USB Receptacle, Current Rating 15 A, Housing Color Light Almond, Number of Outlets 2, Number of Wires 2, Power Indicating Light Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Wire Leads, Wiring Method Back/Side, Face Plate Height 2.6 in, Face Plate Width 1.29 in, GFCI Yes, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material Thermoplastic, IP Rating Not Rated
