  11. Wall Fixture 5-15R Recep Tr Self-Grounding Ivory

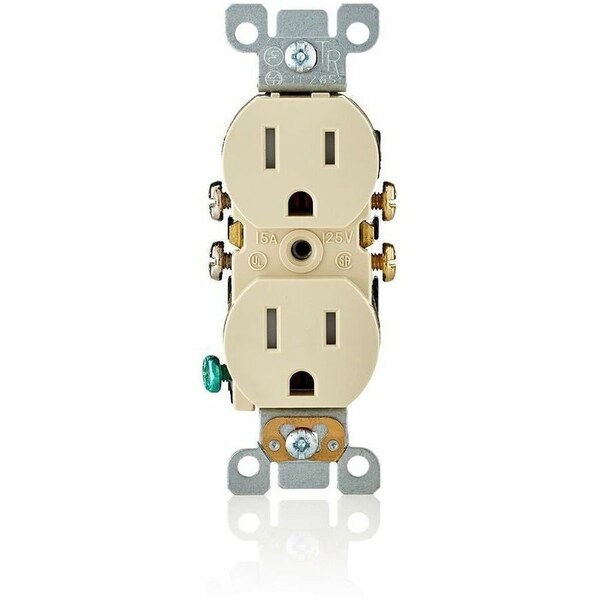

Leviton Wall Fixture 5-15R Recep Tr Self-Grounding Ivory T5320-SI - main

Wall Fixture 5-15R Recep Tr Self-Grounding Ivory

  • Mfr # T5320-SI

  • Zoro # G4046586

product price: $2.15
/ea
Sold in multiples of 4 for $8.60

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5320-SI
Zoro #
G4046586
UPC #
078477429341
Country of Origin
United States

Dimensions

Height
9.5000 in
Width
0.98 in
Length
11.3750 in
Dimensions
1.31 in L x 0.98 in W x 4.2 in H

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NOM Certified, UL Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Termination
Quickwire Push-In & Side
CSA C22.2 No. 42
File 152105; Class 6233-01
UL 498
File E13399
Torque Range
14 - 18 in.-lbs
Device Type
Duplex Receptacle
Feature
Tamper-Resistant
Face Material
Thermoplastic
Wire
3
Pole
2
Base Material
Thermoplastic
Grade
Residential
Socket Type
3 Pin 15 A
Compatibility
Straight Blade Device
Mounting
Screw
Standard
UL\CSA Certified;2008 NEC Compliant;NEMA: 5-15R
Application
Residential
NEMA Rating
NEMA 5-15R
Terminal Type
Quickwire/Push-In/Side Wired

Description

15 Amp, 125 Volt, Tamper Resistant, Duplex Receptacle, Residential Grade, Self Grounding, Ivory
