  11. Wall Mount Sensor, Occupancy, Hard Wired, White, 1,400 sq ft, Fluorescent, Incandescent

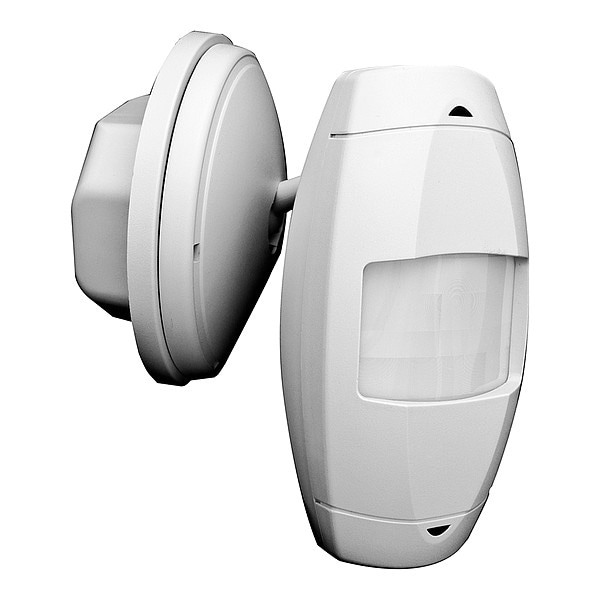

Leviton Wall Mount Sensor, Occupancy, Hard Wired, White, 1,400 sq ft, Fluorescent, Incandescent ODWLR-IDW - main

Wall Mount Sensor, Occupancy, Hard Wired, White, 1,400 sq ft, Fluorescent, Incandescent

  • Mfr # ODWLR-IDW

  • Zoro # G904393434

product price: $174.56
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
Electronic Ballast, Incandescent Ballast, Magnetic Fluorescent Ballast
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 30 min
Includes
Power Base Adapter
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ODWLR-IDW
Zoro #
G904393434
UPC #
078477540053
Country of Origin
China

Dimensions

Maximum Mounting Height
10 ft

Details

Use With - Motion Sensing and Dimming
Electronic Ballast, Incandescent Ballast, Magnetic Fluorescent Ballast
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 30 min
Includes
Power Base Adapter
Item
Occupancy Sensor
Color
White
Communication Method
Hard Wired
Description/Special Features
Ambient Light Recognition, Maximum Reliability, Non-Volatile Memory, Walk-Through
Max. Capacity @ 120VAC
15 A (Incandescent Ballast, Electronic Ballast, 3/4 HP, Magnetic Fluorescent Ballast)
Standards
CEC Title 20/24 Complaint
Lighting Technology
Fluorescent, Incandescent
Installation Location
Wall Mount
Minimum Time Delay
30 sec
Load Rating @ 120V AC
15A, Incandescent, Electronic, Magnetic Fluorescent Ballast, 3/4 HP Motor
Maximum Time Delay
30 min
Series
ODC; ODW
Coverage Angle
360 Degrees
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Occupancy
Time Delay Adjustment Method
Automatic
Maximum Coverage Area
1,400 sq ft
Manufacturer Warranty
5 yr
Maximum Operating Temperature
104 Degrees F
Neutral Wire Connection
Required
Technology
Passive Infrared
Operating Voltage
120/230/277V AC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 120/230/277V AC, Maximum Coverage Area 1,400 sq ft, Maximum Mounting Height 10 ft, Load Rating @ 120V AC 15A (Incandescent, Electronic, Magnetic Fluorescent Ballast, 3/4 HP Motor), Communication Method Hard Wired, Color White, Includes Power Base Adapter, Sensor Operation Occupancy, Lighting Technology Fluorescent, Incandescent, Installation Location Wall, Standards CEC Title 20/24 Complaint

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
