  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Black, 2,400 sq ft, Fluorescent, Incandescent

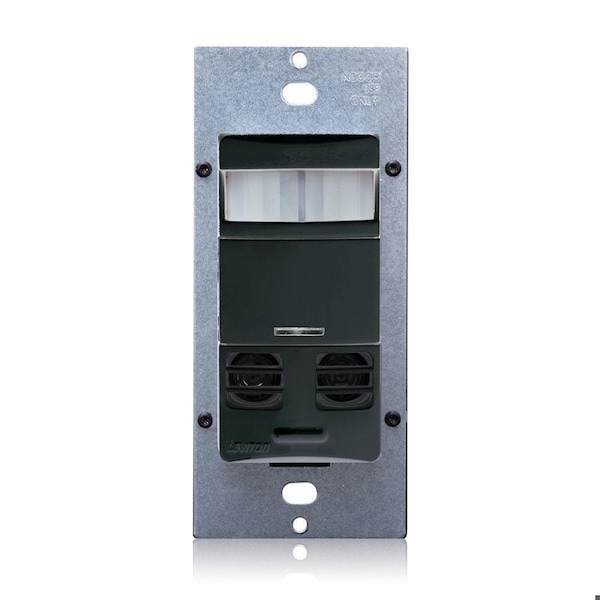

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Black, 2,400 sq ft, Fluorescent, Incandescent OSSMT-MAE - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Black, 2,400 sq ft, Fluorescent, Incandescent

  • Mfr # OSSMT-MAE

  • Zoro # G204393493

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Lighting Technology
Fluorescent, Incandescent
Communication Method
Hard Wired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMT-MAE
Zoro #
G204393493
UPC #
078477509272
Country of Origin
United States

Dimensions

Overall Height
4.06 in
Overall Depth
1.85 in
Overall Width
1.75 in
Size
Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Lighting Technology
Fluorescent, Incandescent
Communication Method
Hard Wired
Standards
Title 24 Compliant, UL/cUL Listed, USMCA Compliant
Max. Capacity @ 277VAC
2700VA (Fluorescent)
Color
Black
Time Delay
30s-30m
Coverage Angle - Motion Sensor
180 Degrees
Max. Capacity @ 120VAC
1200V (Fluorescent), 800W (Incandescent, Tungsten)
Item
Occupancy Sensor
Load Rating @ 277V AC
2,700VA (Fluorescent)
Compatible with Series
Switching Only (universal)
Maximum Operating Temperature
104 Degrees F
Coverage Angle
180 Degrees
Load Rating @ 120V AC
1200VA, Fluorescent, 800W, Incandescent, Tungsten
Installation Location
Wall Mount
Coverage Type
Small Motion
Time Delay Adjustment Method
Adaptive
Minimum Operating Temperature
32 Degrees F
Maximum Coverage Area
2,400 sq ft
Maximum Time Delay
30 min
Manufacturer Warranty
5 yr
Minimum Time Delay
30 sec
Series
Decora
Sensor Operation
Occupancy, Photocell, Vacancy
USMCA Compliant
Yes
Switch Type
Single-Pole
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Wiring
Line - Black, Load - Blue, Ground - Green, Neutral - White
Relative Humidity
20% to 90% non-condensing
Power Consumption
U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Operating Temperature
0°C to 40°C
Grade
Commercial
Neutral Wire Connection
Required
Pattern
180°
Application
Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way)
Includes Motion Sensor
Yes
Fan Rated
Yes
Neutral Required
Yes
Horsepower Rating
1/4 hp
Includes Dimming Switch
Dimming Switch Not Included
Includes Wall Plate
Wall Plate Not Included
Number of Buttons
1
Rated Frequency
50/60 Hz
Nightlight
No
Maximum Detection Distance
40 ft
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1200VA (Fluorescent), 800W (Incandescent, Tungsten), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required Yes, Color Black, Nightlight No, Dimming Method No Dimming
