  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Ivory, 2,400 sq ft, Fluorescent, Incandescent, LED

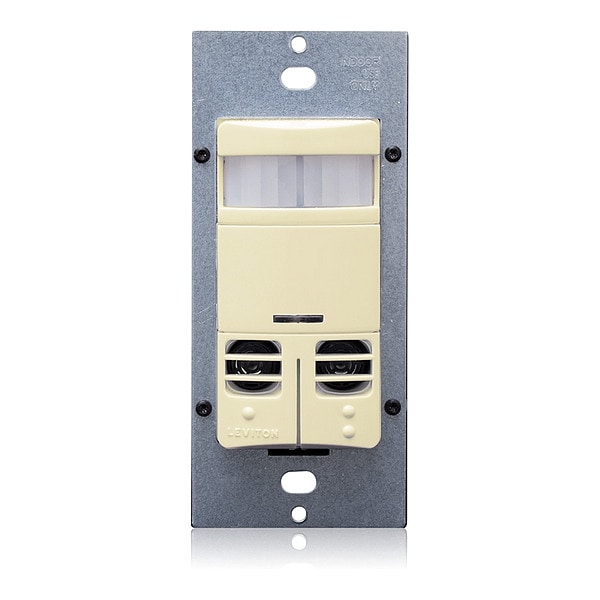

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Ivory, 2,400 sq ft, Fluorescent, Incandescent, LED OSSMD-MAI - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Ivory, 2,400 sq ft, Fluorescent, Incandescent, LED

  • Mfr # OSSMD-MAI

  • Zoro # G004393433

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Adaptive, Adjustable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMD-MAI
Zoro #
G004393433
UPC #
078477509159
Country of Origin
United States

Dimensions

Overall Width
1.75 in
Overall Height
4.06 in
Overall Depth
1.83 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Adaptive, Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Color
Ivory
Sensor Type
Occupancy
Standards
ASHRAE 90.1, CSA Certified, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6, USMCA Compliant
Communication Method
Hard Wired
Lighting Technology
Fluorescent, Incandescent, LED
Max. Capacity @ 277VAC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Item
Occupancy Sensor
Max. Capacity @ 120VAC
10A (LED), 1200V (Fluorescent), 800VA (Fluorescent), 800W (Incandescent)
Coverage Angle - Motion Sensor
180 Degrees
Time Delay
30s-30m
Coverage Type
Small Motion
Manufacturer Warranty
5 yr
Maximum Operating Temperature
104 Degrees F
Load Rating @ 277V AC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Maximum Coverage Area
2,400 sq ft
Sensor Operation
Occupancy, Photocell, Vacancy
Series
Decora
Installation Location
Wall
Minimum Time Delay
30 sec
Time Delay Adjustment Method
Adaptive
Load Rating @ 120V AC
1,200VA, Fluorescent, 10A, LED, 800VA, Fluorescent, 800W, Incandescent
Compatible with Series
Switching Only (universal)
Minimum Operating Temperature
32 Degrees F
Maximum Time Delay
30 min
Coverage Angle
180 Degrees
Horsepower Rating
1/4 hp
Includes Dimming Switch
Dimming Switch Not Included
Dimming Type
No Dimming
Number of Gangs
1
Includes Motion Sensor
Yes
Maximum Detection Distance
40 ft
Dimming Method
No Dimming
Fan Rated
Yes
Rated Frequency
50/60 Hz
Nightlight
No
Number of Buttons
2
Includes Wall Plate
Wall Plate Not Included
Neutral Required
Yes
Neutral Wire Connection
Required
Mounting
Wall Switch
Application
Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
USMCA Compliant
Yes
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Power Consumption
120V 210mW, 277V 410mW
Mounting Type
Wall Switch
Pattern
180°
Relative Humidity
20% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Grade
Commercial
Product Type
Occupancy Sensor
Frequency
50/60Hz
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Wiring
Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red
Switch Type
Single-Pole, Dual Relay
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,200VA (Fluorescent), 10A (LED), 800VA (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required Yes, Color Ivory, Nightlight No
