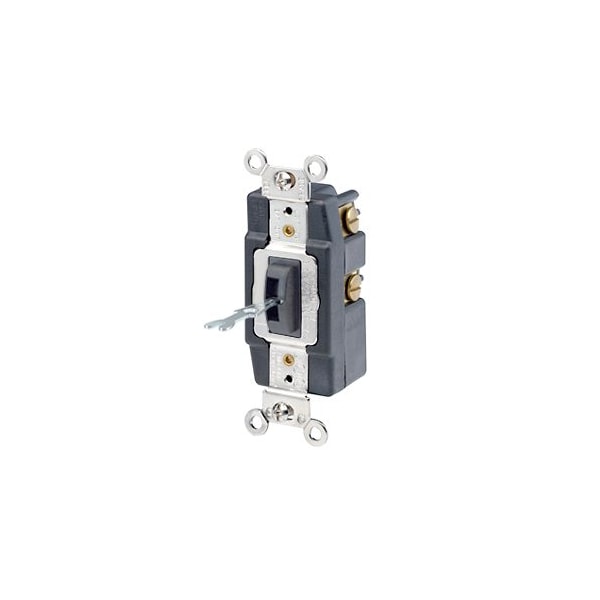

Wall Switch, 1 hp, Toggle, 20 A, Black
Mfr # 1257-L
Zoro # G422587810
product price:Â
$
50.59
/ea
Key Features
Minimum Wire Size
14 AWG
Wire Connection Type
Screw Terminals
Market
Industrial
Strap Material
Steel
Horsepower Rating
1 hp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1257-L
- Zoro #
- G422587810
- UPC #
- 78477808702
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 14 AWG
- Maximum Wire Size
- 10 AWG
Details
- Wire Connection Type
- Screw Terminals
- Market
- Industrial
- Strap Material
- Steel
- Horsepower Rating
- 1 hp
- Housing Material
- Thermoplastic
- Resistance Properties
- Tamper Resistant
- Contact Material
- Silver Alloy
- Voltage Rating
- 120/277V AC
- Current Rating
- 20 A
- Illuminated
- No
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Grounding
- Grounded
- Number of Switches
- 1
- Switch Function
- Momentary
- Switch Type
- Single Pole
- Item
- Wall Switch
- Minimum Operating Temperature
- -40 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Operating Temperature
- 65 Degrees C
- Switch Material
- Thermoplastic
- Color
- Black
- Wiring Method
- Back/Side
Description
Wall Switch, Color Black, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Momentary, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Tamper Resistant, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
