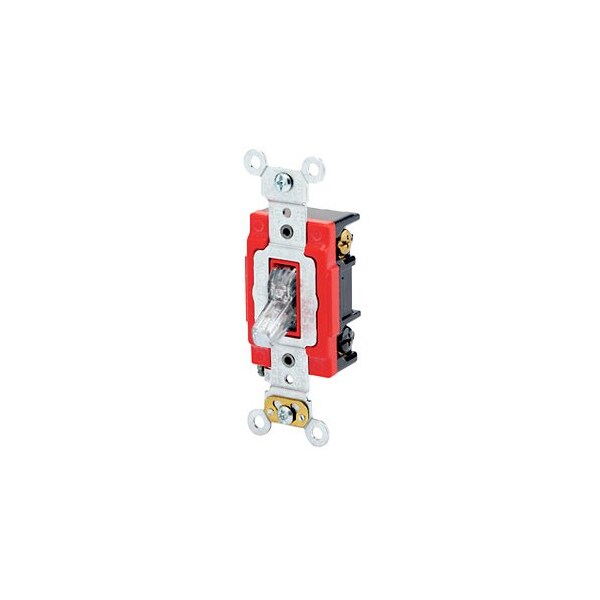

Wall Switch, 1 hp, Toggle, 20 A, Clear
- Mfr # 1223-7LC
- Zoro # G722586353
product price:Â
$
41.69
/ea
Key Features
Contact Material
Silver Alloy
Wiring Method
Back/Side
Strap Material
Galvanized Steel
Overall Height
4.1 in
Minimum Operating Temperature
-40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1223-7LC
- Zoro #
- G722586353
- UPC #
- 78477239186
- Country of Origin
- Mexico
- Contact Material
- Silver Alloy
- Wiring Method
- Back/Side
- Strap Material
- Galvanized Steel
- Minimum Operating Temperature
- -40 Degrees C
- Switch Type
- 3-Way
- Switch Material
- Thermoplastic
- Illuminated
- Yes
- Number of Switches
- 1
- Color
- Clear
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Current Rating
- 20 A
- Switch Function
- Maintained
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Maximum Operating Temperature
- 65 Degrees C
- Item
- Wall Switch
- Grounding
- Grounded
- Housing Material
- Thermoplastic
- Voltage Rating
- 277V AC
- Market
- Industrial
- Wire Connection Type
- Screw Terminals
- Horsepower Rating
- 1 hp
Description
Wall Switch, Color Clear, Current Rating 20 A, Illuminated Yes, Pilot Light Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Galvanized Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
