Shop LEVITON

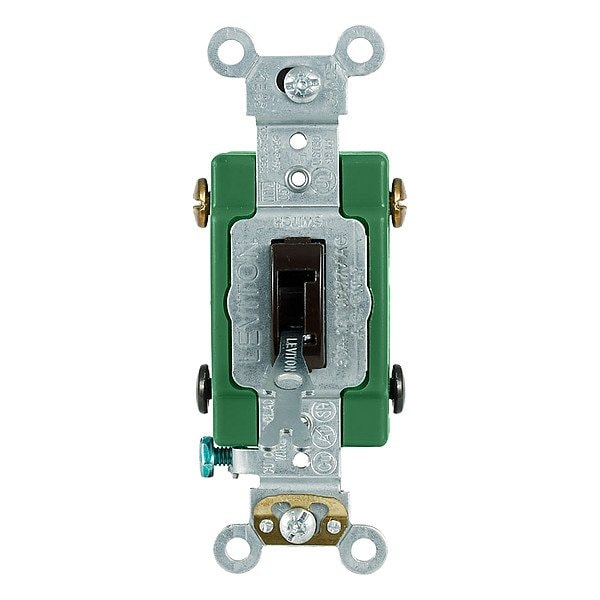

Wall Switch, 2 hp, Locking, 30 A, Brown

  • Mfr # 3032-2L
  • Zoro # G622588129
product price:
$
28.59
/ea

Key Features

Horsepower Rating
2 hp
Voltage Rating
120/277V AC
Wire Connection Type
Screw Terminals
Market
Industrial
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3032-2L
Zoro #
G622588129
UPC #
78477772324
Country of Origin
Mexico
Horsepower Rating
2 hp
Voltage Rating
120/277V AC
Wire Connection Type
Screw Terminals
Market
Industrial
Wiring Method
Back/Side
Switch Material
Thermoplastic
Illuminated
No
Number of Switches
1
Strap Material
Steel
Color
Brown
Maximum Operating Temperature
65 Degrees C
Minimum Operating Temperature
-40 Degrees C
Switch Type
Double Pole
Switch Function
Maintained
Item
Wall Switch
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Features
10-Year Limited, Withstands 1,500V for 1 minute
Resistance Properties
Tamper Resistant
Locking Style
Fork Key
Current Rating
30 A
Contact Material
Silver Alloy
Housing Material
Thermoplastic
Grounding
Grounded
Wire Color
Brown

Dimensions

Minimum Wire Size
14 AWG
Switch Depth
1.3 in
Switch Height
2.2 in
Overall Height
4.1 in
Maximum Wire Size
10 AWG
Overall Width
1.3 in
Fits Chest Size
10-Year Limited, Withstands 1,500V for 1 minute

Description

Wall Switch, Color Brown, Current Rating 30 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Locking Style Fork Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Tamper Resistant, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Locking
