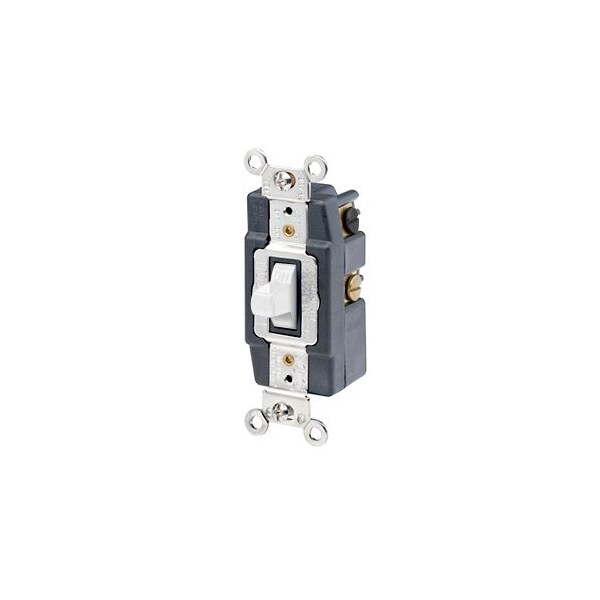

Wall Switch, 2 hp, Toggle, 30 A, White
Mfr # 1288-W
Zoro # G622586279
product price:Â
$
154.99
/ea
Free Shipping & Returns
Key Features
Switch Type
Double Pole/Double Throw
Wire Connection Type
Screw Terminals
Maximum Wire Size
10 AWG
Wiring Method
Back/Side
Number of Switches
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1288-W
- Zoro #
- G622586279
- UPC #
- 78477880647
- Country of Origin
- Mexico
- Switch Type
- Double Pole/Double Throw
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back/Side
- Number of Switches
- 1
- Minimum Operating Temperature
- -40 Degrees C
- Horsepower Rating
- 2 hp
- Contact Material
- Silver Alloy
- Market
- Industrial
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Switch Material
- Thermoplastic
- Grounding
- Grounded
- Switch Function
- Maintained
- Current Rating
- 30 A
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Operating Temperature
- 65 Degrees C
- Illuminated
- No
- Housing Material
- Thermoplastic
- Strap Material
- Steel
- Voltage Rating
- 120/277V AC
- Item
- Wall Switch
- Color
- White
Description
Wall Switch, Color White, Current Rating 30 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Double Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
