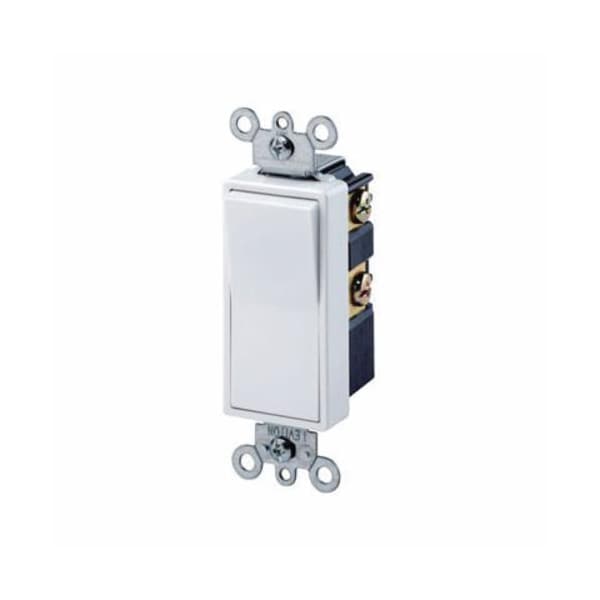

Leviton Wall Switch, 4-Way, 120/277V, 15A, Wht, Rockr 5604-2W - main

Wall Switch, 4-Way, 120/277V, 15A, Wht, Rockr

  • Mfr # 5604-2W

  • Zoro # G4052554

product price:  $19.65
/ea

Key Features

Switch Type
4-Way
Switch Style
Rocker
Amps AC
15
Color
White
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5604-2W
Zoro #
G4052554
UPC #
78477882672
Country of Origin
Mexico

Dimensions

Length
1.69 in
Height
4.19 in
Width
1.62 in
Dimensions
4.2 in H x 1.3 in W x 0.99 in D

Details

Item
Wall Switch
Switch Type
4-Way
Switch Style
Rocker
Amps AC
15
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Side
Application Environment
General Purpose
Standards
UL/CSA
Connection
Quickwired Push-In;Side Wired
Rated HP
1/2
Number of Poles
2
Antimicrobial
No
Description/Special Features
Quiet Switch
Type
Rocker Switch
Voltage
120/277 VAC
Actuator Material
Thermoplastic
Amperage
15 A
Torque Range
14 "- 18 in.-lbs
Standards and Certifications
UL/CSA
Termination
Side Wire & Back Wire
Grounding
Grounding
HP Rating
1/2HP-120V 2HP-240V-277V
Strap Material
Steel
Body Material
Thermoplastic
Max. Amperage
12 Amp
Pole
4
Action
ON/OFF
Application
Residential
Contact Rating
120/277 VAC;15 AMP
Mounting
Wallplate
Terminal Type
Quick-Wire/Push-In/Side Wired
Operating Temperature
-40 to +120 °C
Standard
UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
Power Rating
1/2 hp, 2 hp
Environmental Conditions
Flammability (Rated UL 94 V-2)

Description

15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding, White
