Shop LEVITON

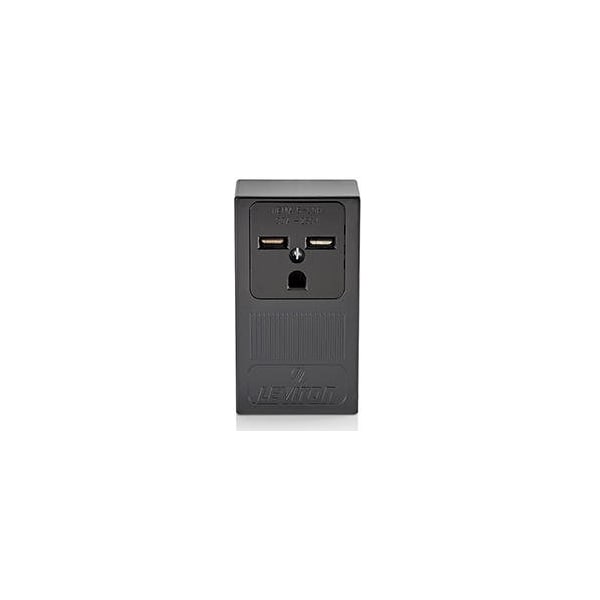

Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Surface Mount, Isolated Ground

  • Mfr # 5376-P00

  • Zoro # G704393245

product price:
$
17.75
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Voltage Rating
250V AC
Phase
Three
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5376-P00
Zoro #
G704393245
UPC #
07847798236
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Black
Mount Type
Surface
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Resistance Properties
Tamper Resistant
NEMA Receptacle Configuration - Plugs and Receptacles
6-30R
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
GFCI
No
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
Horsepower Rating
2 hp
UL 94 Flammability Rating
V-2
Number of Outlets
1
Grade
General Use
Housing Material
Thermoplastic
Market
Commercial, Industrial
Connection Orientation
Straight
Surge Protection
No
Shrouded
No
Flange Type
Non-Flanged
Number of Gangs
2
Number of Wall Plates Included
0
NEMA Enclosure Rating
Not Rated
IP Rating
Not Rated
AFCI
No

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-30R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Phase Three, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant
