  6. Wall Swtch, 1-Pole, 120/277V, 20A, Gry, Rockr

This item is Discontinued.

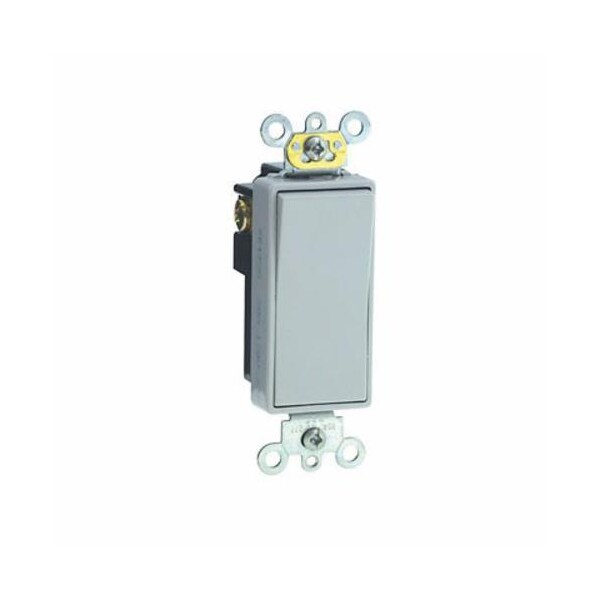

Leviton Wall Swtch, 1-Pole, 120/277V, 20A, Gry, Rockr 5621-2GY

Wall Swtch, 1-Pole, 120/277V, 20A, Gry, Rockr (Discontinued)

  • Mfr # 5621-2GY
  • Zoro # G4046516
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5621-2GY
Zoro #
G4046516
UPC #
78477515037
Country of Origin
Mexico

Dimensions

Width
1.62 in
Length
1.69 in
Height
4.19 in
Size
46 H x 1.76 W x 1.60 D in

Details

Item
Wall Switch
Switch Type
1-Pole
Switch Style
Rocker
Amps AC
20
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back and Side
Application Environment
Commercial
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
Connection
Back Wired;Side Wired
Antimicrobial
No
Grade
Commercial Specification Grade
Voltage
120/277 VAC
Description/Special Features
Quiet Switch
Number of Poles
1
Rated HP
1
Temperature Rise
Maximum 30 degrees C rise
UL Standard
UL 20
HP Rating
1HP-120V 2HP-240V-277V
NEMA
WD-1 & WD-6
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
ANSI
C-73
Grounding
Self-Grounding
Device Type
Rocker Switch
Body Material
Thermoplastic
Max. Amperage
16 Amp
Termination
Back or Side Wire
Operating Temperature
-40°C to 65°C
Amperage
20 A
Actuator Material
Thermoplastic
Function
Single-Pole
Endurance
50,000 cycles minimum
Flammability
Rated V-2 per UL 94
Strap Material
Steel
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 1500V for 1 minute
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Environmental Conditions
Flammability (Rated UL 94 V-2)
Contact Rating
120/277 VAC;20 AMP
Mounting
Box
Standard
UL Listed (E-7458);CSA Certified (LR 3413);NOM Certified (057);Federal Specification (WS-896)

Description

20-Amp 120/277-Volt Decora Plus Rocker Single-Pole AC Quiet Switch, Gray
