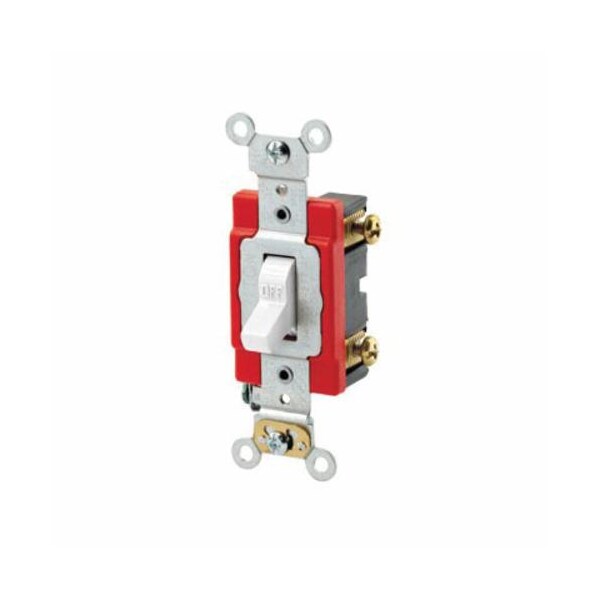

Wall Swtch, 2-Pole, 120/277V, 20A, Wht, Toggl

  • Mfr # 1222-2W

  • Zoro # G4036138

product price:
$
13.99
/ea

Key Features

Switch Function
Maintained
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057, RoHS: Compliant
Switch Type
2-Pole
Mounting
Box
Height
7.2500 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1222-2W
Zoro #
G4036138
UPC #
78477241905
Country of Origin
Mexico

Dimensions

Height
7.2500 in
Length
9.2500 in
Dimensions
46 in H x 1.31 in W x 13 in D

Details

Switch Function
Maintained
Item
Wall Switch
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057, RoHS: Compliant
Switch Type
2-Pole
Mounting
Box
Voltage
120/277 VAC
Body Material
Thermoplastic
Connection
Back Wired;Side Wired
Color
White
Application Environment
Industrial
Rated HP
1
Antimicrobial
No
Amps AC
20
Locking
No
Description/Special Features
Quiet Switch
Voltage AC
120 to 277
Wiring Method
Back and Side
Switch Style
Toggle
Endurance
50,000 cycles minimum
UL Fed Spec WS896E
File #E7458
Terminal Screws
Brass 8-32
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
UL Standard
UL 20
Function
Double-Pole
Base Material
Thermoplastic
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Dielectric Voltage
Withstands 1500V for 1 minute
Screw Terminal Torque
14-18 in-lbs
Grounding
Self-Grounding
CSA C22.2 No. 111
File #152105
Cover Material
Thermoplastic
Toggle
Polycarbonate
Operating Temperature
-40°C to 65°C
NEMA
WD-1 & WD-6
Device Type
Toggle Switch
Amperage
20 A
Grounding Screw
Brass 8-32
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
Termination
Back or Side Wire
Grade
Extra Heavy-Duty Industrial Specification Grade
Temperature Rise
Maximum 30 degress C rise
Flammability
Rated V-2 per UL 94
ANSI
C-73
Contact Material
Silver Alloy
Ground Clips
Brass
HP Rating
1HP-120V 2HP-240V-277V
Strap Material
Steel
Application
Commercial
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
Flammability (Rated V-2 per UL94)
Contact Configuration
DP
Power Rating
800 W, 1000 VA
Action
DP
Number of Poles
2
Operating Cycles
50000
Terminal Type
Back/Side Wired

Description

20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding, Back and Side Wired, White
