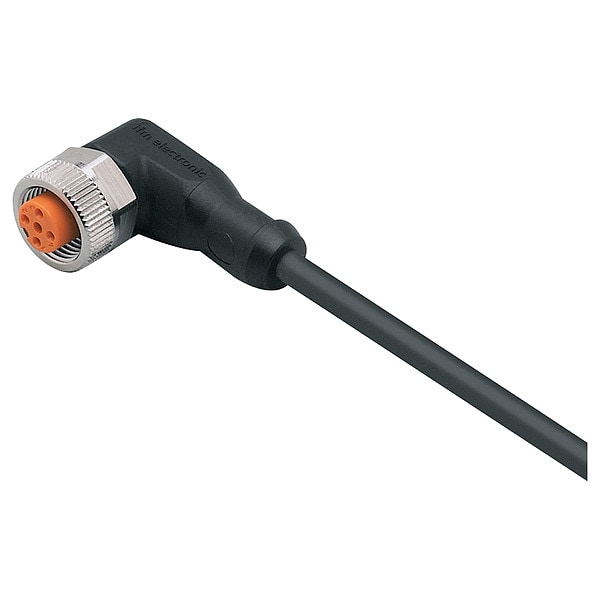

Single-Ended Cordset, 5 m L Cable

  • Mfr # EVC008
  • Zoro # G407877745
product price:
$
24.29
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
5
Wire Size
0.34 mm²
Cable Length
5 m
Cable Jacket Material
PUR
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVC008
Zoro #
G407877745
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size
0.34 mm²
Cable Length
5 m
Dimensions [mm]
26.5 x 15.5 x 36.5
Fits Chest Size
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
5
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP68, IP69K
Max. Amps
4 A
Maximum Operating Temperature
194 Degrees F
End 1 Connection Type
M12
Features
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism
Max. Voltage
36 V DC
End 2 Connection Type
Bare Wire
Standards
CE, cULus, UKCA
Minimum Operating Temperature
-13 Degrees F
End 1 Mounting Orientation
Angle
End 1 Gender
Female
End 1 Number of Keyways
1
Cable Type
Round
Number of Wires
4
MTTF [years]
20027
Materials
housing: TPU black transparent; Sealing: FKM
Display
switching status 2 x LED, yellow operation 1 x LED, green
Max. current load total [A]
4
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical design
PNP
Ambient temperature [°C]
-25...90
Ambient temperature (moving) [°C]
-25...90
Protection class
II
Operating voltage [V]
10...36 DC
Connection
Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Material nut
brass, nickel-plated

Description

Single-Ended Cordset, End 1 Gender Female, End 1 Number of Pins 5, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 0.34 sq mm, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, UKCA, Cable Type Round, End 1 Number of Keyways 1
