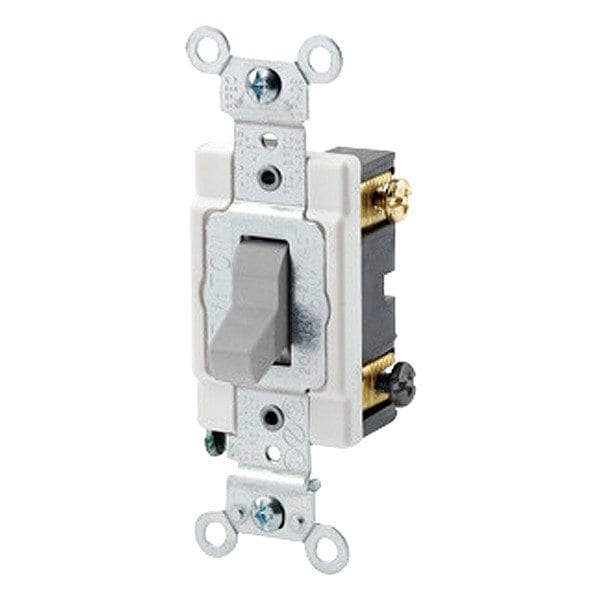

WallSwitch, 1hp, Toggle, 20A, Gray, PK10
Mfr # CSB4-20G
Zoro # G322587996
product price:Â
$
420.99
/pk of 10, $42.10/ea
Free Shipping & Returns
Key Features
Wire Connection Type
Screw Terminals
Overall Width
1.3 in
Maximum Operating Temperature
65 Degrees C
Switch Depth
1 in
Market
Commercial
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CSB4-20G
- Zoro #
- G322587996
- UPC #
- 78477965351
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 1.3 in
- Switch Depth
- 1 in
- Minimum Wire Size
- 14 AWG
- Switch Height
- 2.2 in
- Maximum Wire Size
- 10 AWG
- Overall Height
- 4.1 in
Details
- Wire Connection Type
- Screw Terminals
- Maximum Operating Temperature
- 65 Degrees C
- Market
- Commercial
- Minimum Operating Temperature
- -40 Degrees C
- Color
- Gray
- Contact Material
- Silver Alloy
- Switch Type
- 4-Way
- Grounding
- Grounded
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Voltage Rating
- 120/277V AC
- Item
- Wall Switch
- Switch Material
- Thermoplastic
- Horsepower Rating
- 1 hp
- Wiring Method
- Back/Side
- Strap Material
- Steel
- Housing Material
- Thermoplastic
- Current Rating
- 20 A
Description
Wall Switch, Color Gray, Current Rating 20 A, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy, Features 10-Year Limited, Withstands 1,500V for 1 minute
