Shop LEVITON

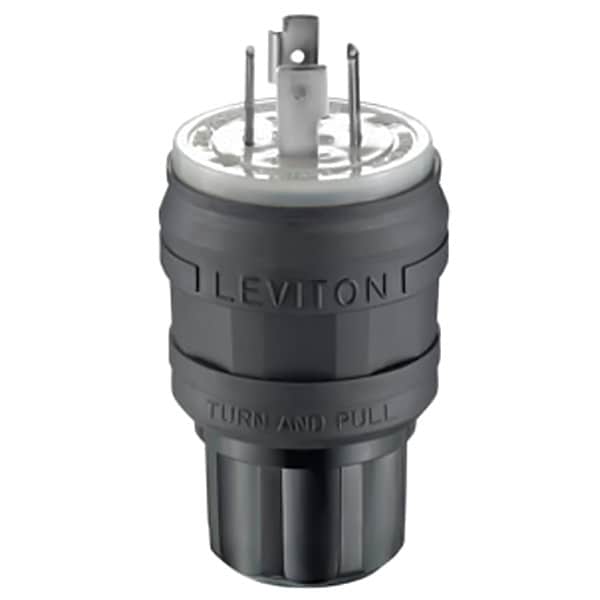

Watertight Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # 26W75-B

  • Zoro # G404393415

product price:  $26.99
/ea

Key Features

Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
26W75-B
Zoro #
G404393415
UPC #
07847705381
Country of Origin
Mexico

Dimensions

Cord Size
0.52 in to 0.93 in
For Maximum Cable Diameter
0.875 in
Maximum Wire Size
10 AWG
For Minimum Cable Diameter
0.375 in
Minimum Wire Size
16 AWG
Face Diameter
2.06 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498
Resistance Properties
Acid, Alkalies, Lubricant and Solvent Resistant, Water, Watertight
Grade
General Use
Body Material
Santoprene TPV
Material
Santoprene TPV
IP Rating
IP66, IP67, IP68, IP69K
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Housing Material
Santoprene
Maximum Operating Temperature
140 Degrees F
For Environment
Washdown
Horsepower Rating
3 hp
Midget Locking
No
Blade Material
Nickel-Plated Brass
Polarized
Yes
Flammability
Rated V-2 per UL 94
Series
Perma-Tite
Power and Ground Indicating Light
No
Features
Industry Exclusive Limited Lifetime Warranty
UL 94 Flammability Rating
V-2

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Santoprene, NEMA Plug Configuration L15-20P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Watertight, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.06 in, For Maximum Cable Diameter 0.875 in, For Minimum Cable Diameter 0.375 in, Grade General Use, Grounding Grounded

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
