Shop LEVITON

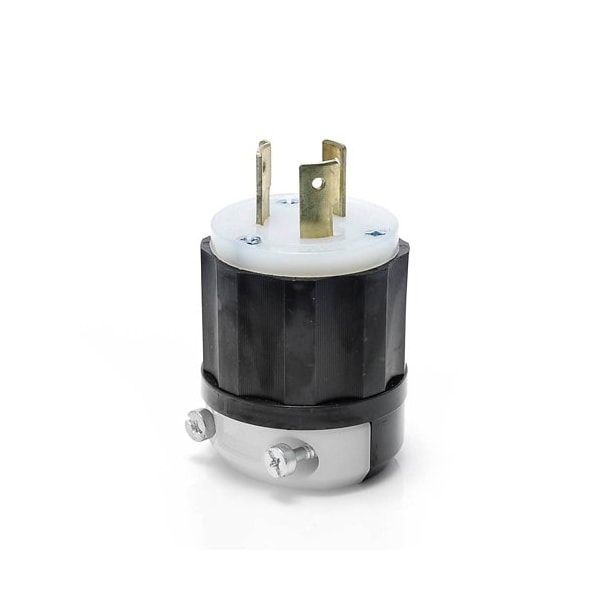

Locking Plug, L12-20P, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 2381

  • Zoro # G315864714

product price:  $29.99
/ea

Key Features

NEMA Plug Configuration
L12-20P
Current Rating
20 A
Phase
Three
Number of Poles
3
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2381
Zoro #
G315864714
UPC #
078477807743
Country of Origin
Mexico

Dimensions

Length
2.47 in
For Minimum Cable Diameter
0.385 in
For Maximum Cable Diameter
0.78 in
Maximum Wire Size
10 AWG
Face Diameter
1.843 in
Outside Diameter
1.84 in
Minimum Wire Size
16 AWG
Wire Rope Length
2.47 in

Details

Item
Locking Plug
NEMA Plug Configuration
L12-20P
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Non-Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Housing Material
Nylon
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
Maximum Operating Temperature
140 Degrees F
Features
One Piece Contacts
Market
Industrial
Horsepower Rating
5 hp
For Environment
Dry
Power and Ground Indicating Light
No
IP Rating
Not Rated
UL 94 Flammability Rating
HB
Grade
Federal Specification

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L12-20P, Number of Blades 3, Number of Poles 3, Phase Three, Resistance Properties Impact Resistant, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.843 in, For Maximum Cable Diameter 0.78 in, For Minimum Cable Diameter 0.385 in, Grade Federal Specification, Grounding Non-Grounded
