  11. Watertight Locking Plug, Non-NEMA, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

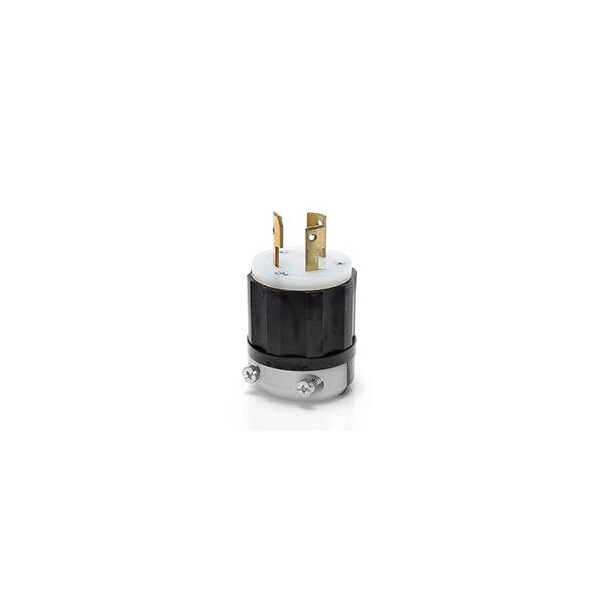

Leviton Watertight Locking Plug, Non-NEMA, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals 3331-C - main

Watertight Locking Plug, Non-NEMA, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # 3331-C

  • Zoro # G804255979

product price: $27.19
/ea

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3331-C
Zoro #
G804255979
UPC #
07847781682
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.385 in
Cord Size
0.625 in to 10.125 in
Outside Diameter
1.563 in
Maximum Wire Size
8 AWG
Face Diameter
1.375 in
Minimum Wire Size
16 AWG
Body Length
1.859 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Body Material
Impact Modified Nylon
Grade
Industrial
Special Features
Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Material
Impact Modified Nylon
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Blade Material
Brass
Midget Locking
No
Housing Material
Nylon
Polarized
Yes
Flammability
Rated HB or better UL94

Description

Watertight Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.375 in, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.385 in
