  11. Watertight Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Yellow

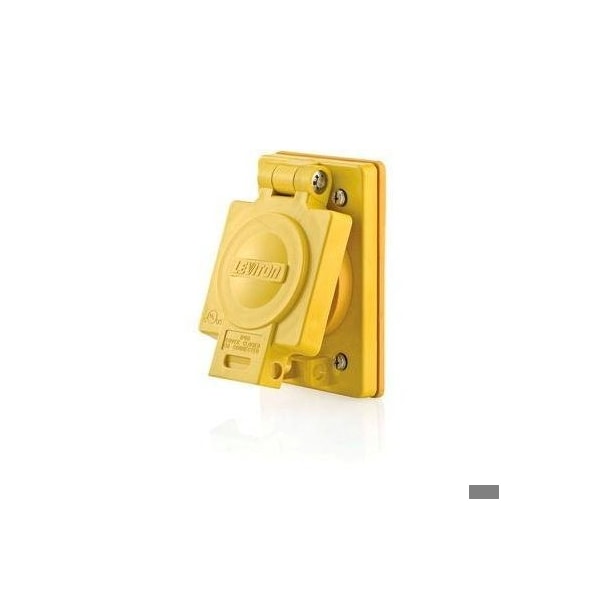

Leviton Watertight Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Yellow 65W34 - main

Watertight Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Yellow

  • Mfr # 65W34

  • Zoro # G615864742

product price: $99.69
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
65W34
Zoro #
G615864742
UPC #
078477065631
Country of Origin
Mexico

Dimensions

Flange Height
4.63 in
Flange Width
3.13 in
Mount Hole Center-to-Center Height
3.25 in
Face Plate Height
1.078 in
Face Diameter
1.356 in
Face Plate Width
3.13 in
Flange Diameter
1.356 in

Details

Item
Watertight Locking Receptacle
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
IP Rating
IP67
NEMA Enclosure Rating
3, 3S, 4, 4X, 6, 6P
Standards
UL/CSA/NOM
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
For Environment
Wet
Market
Industrial
Flange Shape
Rectangular
Housing Material
Nylon
Connection Orientation
Straight
Features
Resistant to Water, Acids, Alkalis, and Many Automotive and Industrial Lubricants and Solvents
Number of Outlets
1
AFCI
No
Includes Mounting Hardware
Yes
Midget Locking
No
Contact Material
Nickel Plated Phosphor Bronze

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Rectangular, Flange Type Flanged, Housing Color Yellow, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Nickel Plated Phosphor Bronze, Cover Type Flip-Up Cover
