Shop LEVITON

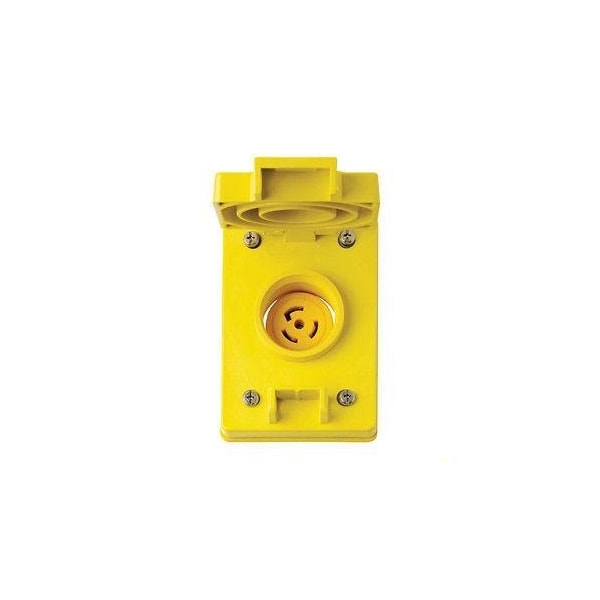

Watertight Locking Receptacle, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Yellow

  • Mfr # 67W49

  • Zoro # G415864737

product price:
$
130.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
67W49
Zoro #
G415864737
UPC #
078477062012
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Face Diameter
1.47 in
Mount Hole Center-to-Center Height
3.75 in

Details

Item
Watertight Locking Receptacle
NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL Fed Spec WC-596, UL498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
Market
Industrial
Grade
Federal Specification
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Horsepower Rating
1 hp
Features
Resistant to Water, Acids, Alkalis, and Many Automotive and Industrial Lubricants and Solvents
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Number of Outlets
1
For Environment
Wet
Wiring Style
Standard
IP Rating
IP67
Shrouded
No
Midget Locking
No
Includes Mounting Hardware
Yes
AFCI
No
Hub Type
Dead End
NEMA Enclosure Rating
4X
Series
Insulgrip
Number of Gangs
1
UL 94 Flammability Rating
V-0

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Yellow, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating 4X, NEMA Receptacle Configuration L7-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, AFCI No, Contact Material Nickel-Plated Brass
