Shop LEVITON

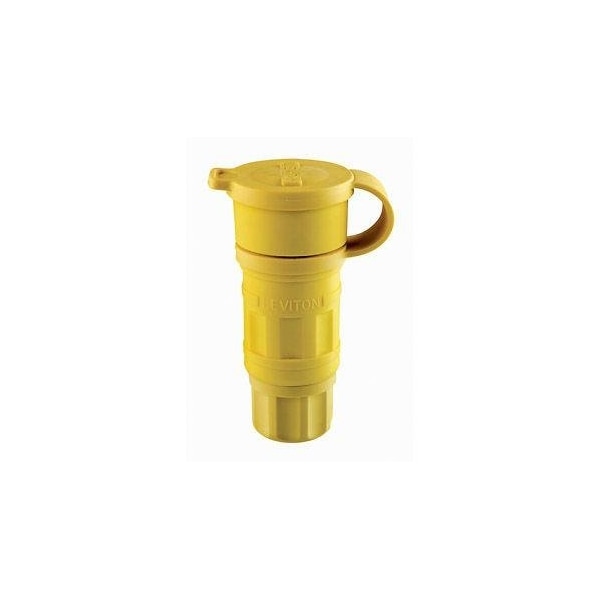

Watertight Straight Blade Connector, Non-NEMA, 15 A, 125V AC, 3 Pole, 3 Wire, Screw Terminals

  • Mfr # 15W07

  • Zoro # G316045655

product price:
$
74.79
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
15W07
Zoro #
G316045655
UPC #
078477474174
Country of Origin
Mexico
Item
Watertight Straight Blade Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Non-Grounded
Housing Color
Yellow
Cap Type
Flip-Up Cap
IP Rating
IP66, IP67, IP69K
Standards
ANSI, CSA, NEMA, NOM, UL498
Resistance Properties
Acid, Alkalies, Water Resistant
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
60 deg C
For Environment
Wet
Contact Material
Nickel-Plated Brass
Power Indicating Light
No
Housing Material
Santoprene TPV
Market
Industrial
UL 94 Flammability Rating
V-2
Polarized
Yes
Series
Molex (Woodhead)

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 10 A, 15 A, Housing Color Yellow, NEMA Receptacle Configuration Non-NEMA, Number of Poles 3, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Corrosion Resistant, Watertight, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Cap Type Press-On Cap, For Maximum Cable Diameter 0.69 in, For Minimum Cable Diameter 0.23 in, Grounding Non-Grounded, Horsepower Rating Not Applicable
