Shop LIBERTY PUMPS

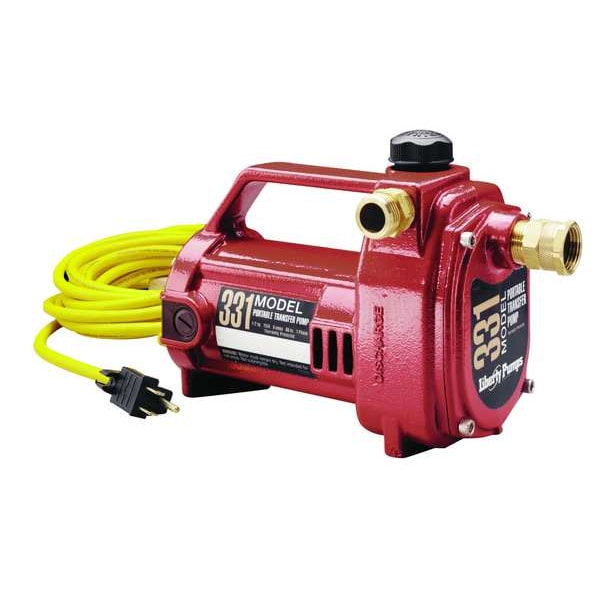

1/2 HP Utility Pump, 115V AC, 3/4 in Hose, GHT Intake

  • Mfr # 331

  • Zoro # G0895535

product price:
$
316.50
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Cord Length
20 ft
Max. Head
105 ft
Seal Material
Buna-N, Carbon, Ceramic
GPM of Water @ 30 Ft. of Head
17
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
331
Zoro #
G0895535
UPC #
671812108941
Country of Origin
United States

Dimensions

Cord Length
20 ft
Height
7 in
Max. Dia. Solids
1/8 in
Width
4 1/2 in
Manufacturers Warranty Length
2 yr
Length
9.7 in
Compatible Discharge Pipe Size
3/4 in
Overall Height
7 in
Overall Length
9.7 in
Overall Width
4.5 in
Solid Diameter (Maximum)
0.13 in
Compatible Intake Pipe Size
3/4 in
Intake Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Impeller Diameter
2 7/32 in
Shaft Outer Diameter
5/16 in
Wire Rope Length
9.7 in

Details

HP
1/2 hp
Max. Head
105 ft
Seal Material
Buna-N, Carbon, Ceramic
GPM of Water @ 30 Ft. of Head
17
GPM of Water @ 5 Ft. of Head
23
GPM of Water @ 25 Ft. of Head
18
GPM of Water @ 10 Ft. of Head
22
Duty
Intermittent
GPM of Water @ 50 Ft. of Head
13
Impeller Material
Thermoplastic
GPM of Water @ 15 Ft. of Head
21
Motor Type
Brushed
Bearing Type
Ball
Voltage
115
GPM of Water @ 35 Ft. of Head
16
Motor Enclosure
Open Drip Proof
Housing Material
Cast Aluminum
Max. Liquid Temp.
135 Degrees F
GPM of Water @ 20 Ft. of Head
19
Amps
8.0 A
Item
Utility Pump
GPM of Water @ 40 Ft. of Head
15
Agency Compliance
CSA
Includes
3/4 in OD Brass Garden Hose Connectors, Plastic Suction Screen
Phase
Single
Hz
60
Volute Material
Aluminum
Features
Large Prime Plug with Internal Funnel Design for Easy Priming, One-Piece Cast Aluminum Pump and Motor Housing with Integral Carry Handle
Seal Type
Mechanical Cartridge
Shaft Material
Stainless Steel
Flow Rate @ 100 ft of Head (Maximum)
0 gpm
Flow Rate @ 10 ft of Head (Maximum)
22 gpm
Standards
CSA Certified
Nameplate Voltage
115V AC
For Use With Potable Systems
No
Duty Cycle
Intermittent
Shut Off Pressure (Maximum)
45 psi
Priming
Manual
Wetted Material
Brass, Aluminum, Stainless Steel, Thermoplastic
Best Efficiency Flow
10 gpm
Flow Rate @ 1 ft of Head (Maximum)
23.3 gpm
Flow Rate @ 60 ft of Head (Maximum)
10.3 gpm
Impeller Design
Open
Flow Rate @ 30 ft of Head (Maximum)
17 gpm
Suction Lift (Maximum)
15 ft
Flow Rate @ 70 ft of Head (Maximum)
8.4 gpm
NPSHr
138.6 ft
Specific Gravity (Maximum)
1
Frequency
60 Hz
Horsepower
1/2 hp
Flow Rate @ 90 ft of Head (Maximum)
3.8 gpm
Flow Rate @ 20 ft of Head (Maximum)
20 gpm
Maximum Feet of Head
105 ft
Flow Rate @ 15 ft of Head (Maximum)
21 gpm
Pump Housing Material
Aluminum
Intake Type
GHT
Flow Rate @ 80 ft of Head (Maximum)
6.3 gpm
Flow Rate @ 50 ft of Head (Maximum)
13 gpm
Flow Rate @ 40 ft of Head (Maximum)
15 gpm
Best Efficiency Head
65 ft
Flow Rate @ 5 ft of Head (Maximum)
23 gpm
Viscosity (Maximum)
6 cps
Mounting Orientation
Horizontal
Flow Rate @ 10 ft of Head - Maximum
22 gpm
Thermal Overload Protection
Yes
Pump Design
Inline
Feet of Head (Maximum)
105 ft
Inlet Standard
GHT
Media Temperature - Minimum
32 Degrees F
Suction Lift - Maximum
15 ft
Number of Stages
1
Discharge Rotation Increments
0 Degrees
Chemical Compatibility
Glycol, Water
Shaft Seal Type
Lip
Pumping Application
Liquid Transfer
Inlet Orientation
Side
Flow Rate (Maximum)
24.2 gpm
Shaft Seal Material
Buna-N, Carbon/Ceramic
Drive Coupling Type
No Coupling
Shut Off Pressure - Maximum
40 psi
Full Load Current
8 A
Case Pressure - Maximum
40 psi
Hazardous Location Class
Not Rated
Discharge Orientation
Side
Media Temperature - Maximum
135 Degrees F

Description

Utility Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 1/2 hp, Nameplate Voltage 115V AC, Flow Rate @ 40 ft of Head (Maximum) 15 gpm, Flow Rate @ 60 ft of Head (Maximum) 10.3 gpm, Flow Rate @ 80 ft of Head (Maximum) 6.3 gpm, Maximum Feet of Head 105 ft, Compatible Intake Pipe Size 3/4 in, Intake Type GHT, Compatible Discharge Pipe Size 3/4 in, Motor Enclosure Open Drip Proof, Flow Rate @ 5 ft of Head (Maximum) 23 gpm, Flow Rate @ 10 ft of Head (Maximum) 22 gpm
