Shop LITTLE GIANT PUMP

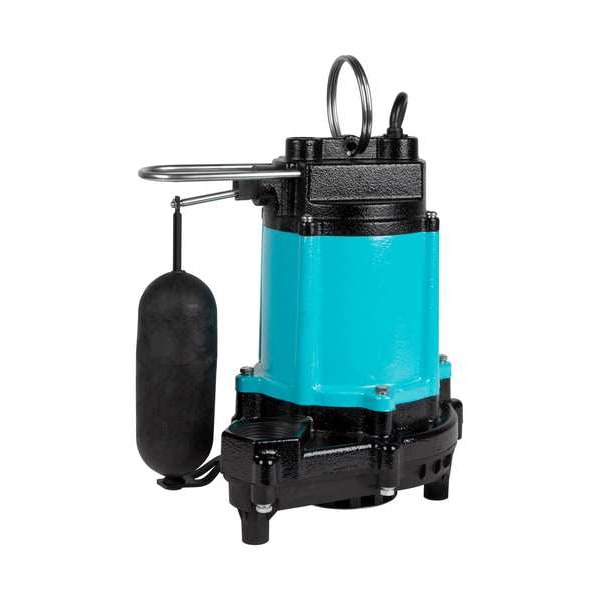

Submersible Sump Pump, 20ft, 11.25 in, 115V AC

  • Mfr # 510802

  • Zoro # G204218017

product price:
$
368.34
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
HP
1/2
Hz
60 Hz
Impeller Material
Nylon
Max. Head
36 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
510802
Zoro #
G204218017
UPC #
-
Country of Origin
China

Dimensions

Cord Length
20 ft
Max. Diameter Solids
1/2 in
Manufacturers Warranty Length
3 yr
Min. Sump Pit Dia.
18 in
Discharge Dia.
1 1/2 in
Width at Widest Point
10 3/4 in
Overall Height
11 1/4 in
Body Dia.
8 1/2 in
Body Diameter
8 1/2 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/2 in

Details

HP
1/2
Hz
60 Hz
Impeller Material
Nylon
Max. Head
36 ft
Phase
Single
Max. Liquid Temp.
140 Degrees F
On Point
8 - 11 in
NEC Cord Designation
SJTW
Thermal Protection
Auto
Amps
6.5 A
Gauge/Conductor
18/3
Agency Compliance
CSA
Base Material
Polypropylene
Off Point
2 - 5 in
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile
Application
Dewatering, Transfer, Waste Removal
Item
Submersible Sump Pump
Alarm Included
Yes
Flow Rate @ 5 Ft. of Head
67 gpm
Phase - Pumps
1
Flow Rate @ 15 Ft. of Head
53 gpm
Flow Rate @ 20 Ft. of Head
47 gpm
Discharge
1 1/2 FNPT
Rated Voltage
115V AC
Discharge Standard
NPT
RPM
3,600 RPM
Discharge Gender
Female
Body Material
Cast Iron
Switch Actuation
Vertical Float
Duty Cycle
Continuous
Switch Electrical Connection
Integral
Flow Rate @ 10 Ft. of Head
57 gpm
Series
10EC-CIA-SFS
For Industry
Residential
Motor Housing Material
Cast Iron
Liquid Temperature - Maximum
140 Degrees F
Power Source
Corded Electric
Operation
Automatic
Horsepower
1/2 hp
Frequency
60 Hz
For Media Type
Effluent Water
Flow Rate @ 10 ft of Head
57 gpm
Requires Control Panel
No Control Panel Required
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Standards
cCSAus
Installation
Submersible
Current
6.5 A
Volute Material
Cast Iron
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Material
Carbon/ Ceramic/Nitrile Rubber
Impeller Design
Semi-Open
Feet of Head - Maximum
36 ft
Hazardous Location Class
Not Rated
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Phase - Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 6.5 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 2 - 5 in, On Point 8 - 11 in, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile, Flow Rate @ 5 Ft. of Head 67 gpm, Flow Rate @ 10 Ft. of Head 57 gpm, Flow Rate @ 15 Ft. of Head 53 gpm, Flow Rate @ 20 Ft. of Head 47 gpm, Max. Head 36 ft, Min. Sump Pit Dia. 18 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
