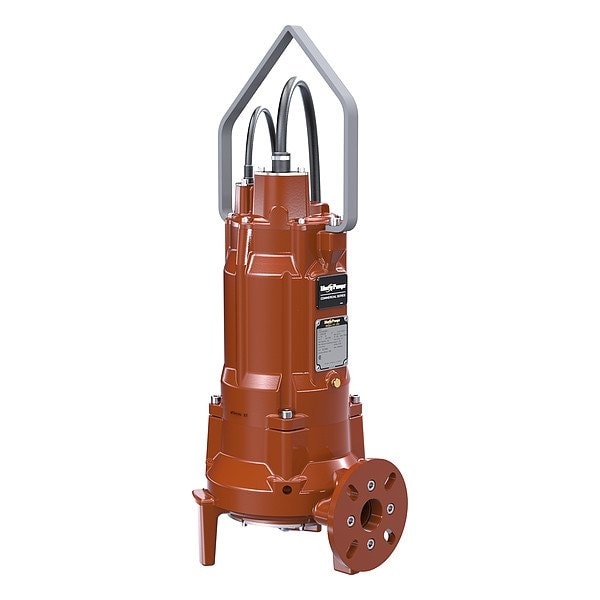

Grinder Pump, 14 in L, 12 1/2 in W

Mfr # LSGH505M-5
Zoro # G221725239

9,635.99

Additional $300.00 delivery surcharge applies per item.

Key Features

Hazardous Location Class

Not Rated

Shaft Seal Material

Carbon/Ceramic/Viton Elastomers (Upper); Silicon Carbide/Graphite Impregnated Silicon Carbide/Viton Elastomers (Lower)

Feet of Head - Maximum

130 ft

Liquid Temperature - Maximum

104 Degrees F

Current

6 A

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LSGH505M-5
Zoro #: G221725239
UPC #: 671812167221
Country of Origin: United States

Dimensions

Manufacturers Warranty Length: 18 mo
Overall Width: 12 1/2 in
Cord Length: 50 ft
Overall Length: 14 in
Sump Pit Diameter - Minimum: 30 in
Overall Height: 36 1/2 in
Discharge Diameter: 2 in
Wire Rope Length: 14 in
Length: 14 in

Details

Hazardous Location Class: Not Rated
Shaft Seal Material: Carbon/Ceramic/Viton Elastomers (Upper); Silicon Carbide/Graphite Impregnated Silicon Carbide/Viton Elastomers (Lower)
Feet of Head - Maximum: 130 ft
Liquid Temperature - Maximum: 104 Degrees F
Current: 6 A
For Media Type: Grey Water, Sewage Water
Thermal Protection: Auto
Operation: Automatic
Horsepower: 5 hp
Flow Rate @ 10 ft of Head: 115 gpm
Motor Design: Capacitor-Start/Run
Switch Electrical Connection: Manual
Motor Housing Material: Cast Iron
Shaft Seal Type: Double Mechanical
Power Source - TS Only: Corded Electric
Application: Waste Removal
Standards: ANSI/UL 778, CAN/CSA C22.2 NO.108-14, CSA, UL
Installation: Submersible
Phase: Three
Impeller Material: Stainless Steel
Duty Cycle: Continuous
Requires Control Panel: Control Panel Required
Switch Actuation: No Switch Included
Rotation Speed - Maximum: 3,450 RPM
Cord Termination: Plug
Series: LSG500
Item: Grinder Pump
Volute Material: Cast Iron
Discharge Gender: Female
Discharge Standard: NPT
Rated Voltage: 575V AC
Discharge Orientation: Horizontal
Frequency: 60 Hz
Power Source: Corded Electric
Power Source - old: Corded Electric

Description

Grinder Pump, Rated Voltage 575V AC, Impeller Material Stainless Steel, Switch Actuation No Switch Included, Switch Electrical Connection Manual, Overall Height 36 1/2 in, Cord Length 50 ft, Overall Width 12 1/2 in, Overall Length 14 in, Duty Cycle Continuous, Thermal Protection Auto, Manufacturers Warranty Length 18 mo

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
