Shop LITTLE GIANT PUMP

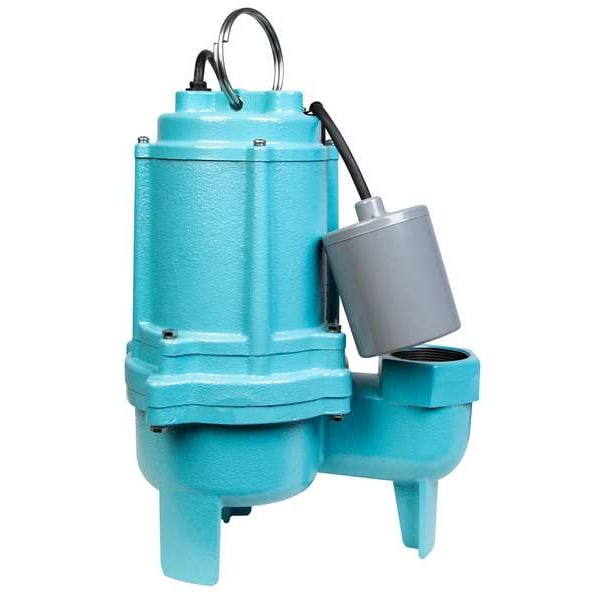

Sewage Ejector Pump, 20ft, 0.4hp, 115V AC

  • Mfr # 509412
  • Zoro # G801968643
product price:
$
443.94
/ea
Free Shipping & Returns

Key Features

HP
4/10
Phase - Pumps
1
Switch Actuation
Piggyback Mechanical Float Switch
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
80 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
509412
Zoro #
G801968643
UPC #
0010121003248
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Cord Length
20 ft
Manufacturers Warranty Length
3 yr
Min. Sump Pit Dia.
18 in
Body Dia.
8 3/5 in
Width at Widest Point
10 1/2 in
Overall Height
14 in
Solids Diameter - Maximum
2 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
8 5/8 in
Discharge Diameter
2 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Piggyback Mechanical Float Switch
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
80 gpm
Max. Head
20 ft
Impeller Material
Nylon
Thermal Protection
Auto
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile
Agency Compliance
cCSAus Listed
Gauge/Conductor
18/3
Phase
Single
Max. Liquid Temp.
140 Degrees F
Amps
8 A
Hz
60 Hz
Item
Sewage Ejector Pump
Motor Type
Permanent Split Capacitor
Discharge
2 in FNPT
RPM
3,450 RPM
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
60 gpm
Duty Cycle
Continuous
Switch Electrical Connection
Piggyback
Series
9SC-CIA-RF
Liquid Temperature - Maximum
140 Degrees F
Feet of Head - Maximum
20 ft
Current
8 A
Flow Rate @ 10 ft of Head
80 gpm
Frequency
60 Hz
Rotation Speed - Maximum
3,450 RPM
Horsepower
2/5 hp
Standards
cCSAus Listed
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Volute Material
Cast Iron
Requires Control Panel
No Control Panel Required
For Media Type
Sewage Water
Discharge Orientation
Vertical
Application
Dewatering, Transfer, Waste Removal
Installation
Submersible
Shaft Seal Type
Single Mechanical
Off Point
9 in
On Point
19 in
Motor Housing Material
Cast Iron
Motor Design
Permanent Split Capacitor
Impeller Design
Vortex
Power Source
Corded Electric
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 8 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, On Point 19 in, Off Point 9 in, Flow Rate @ 10 Ft. of Head 80 gpm, Flow Rate @ 15 Ft. of Head 60 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in, Body Dia. 8 3/5 in
